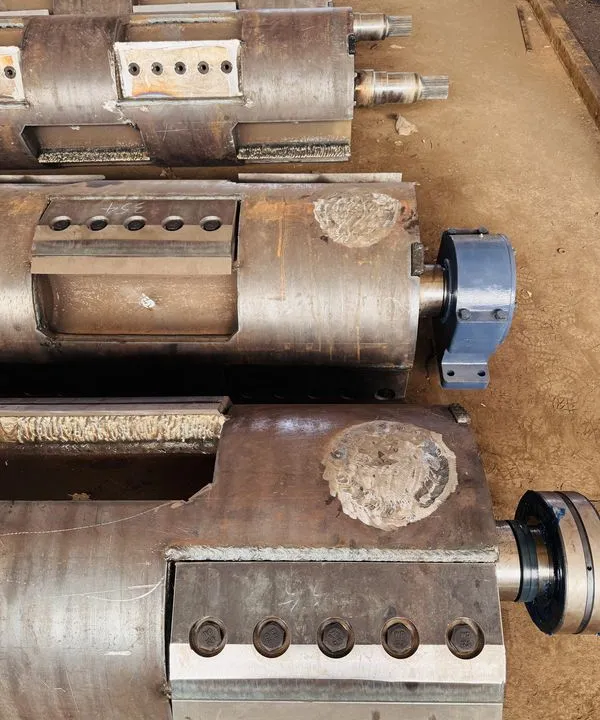

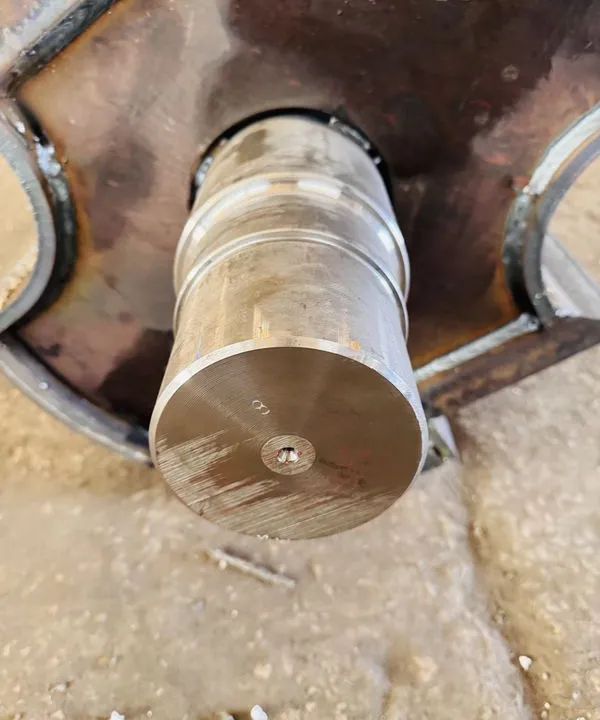

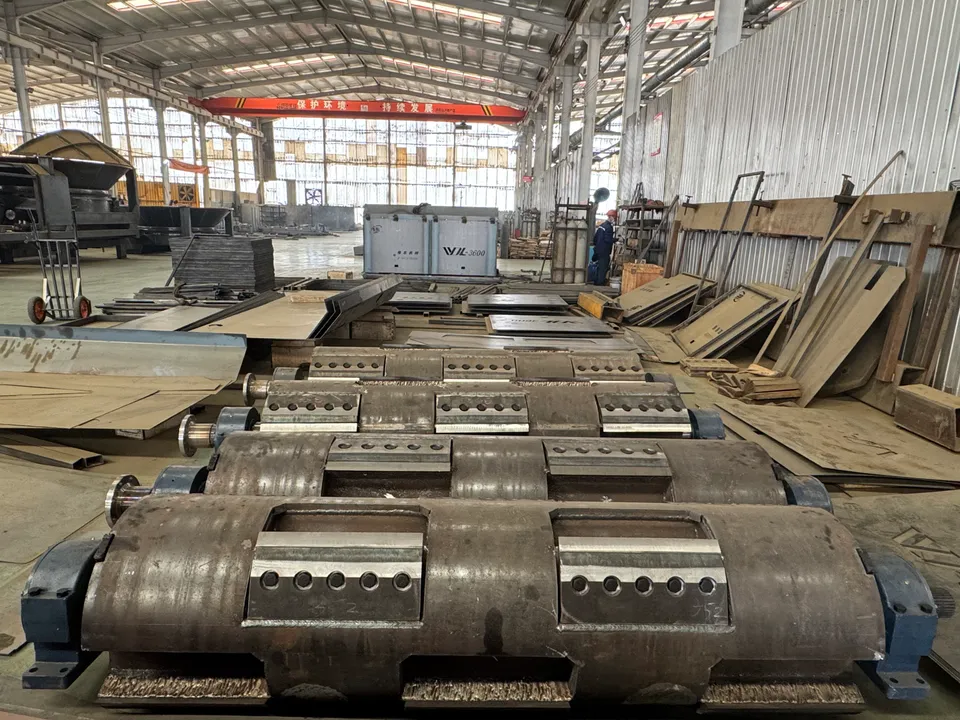

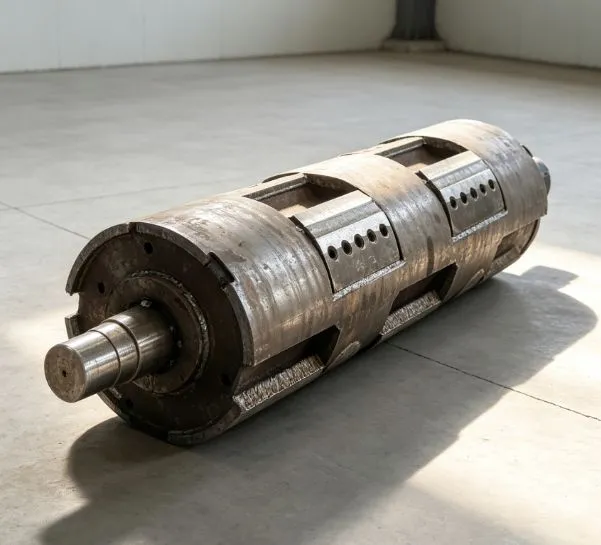

The WeiDong WDP-KR3600 is a knife rotor assembly for compatible WeiDong 3600 Series tub grinder configurations. Rotor fit, shaft and bearing interfaces, cutter layout, drive connection and machine revision must be checked before quotation.
| Item | Value |
|---|---|
| Applicable Model | WD3600 series tub grinders |
| Assembly Includes | Roller body, cutting blades, mounting bolts |
| Balancing | Dynamic balanced at factory |
| Installation | Pre-assembled, one-step swap |

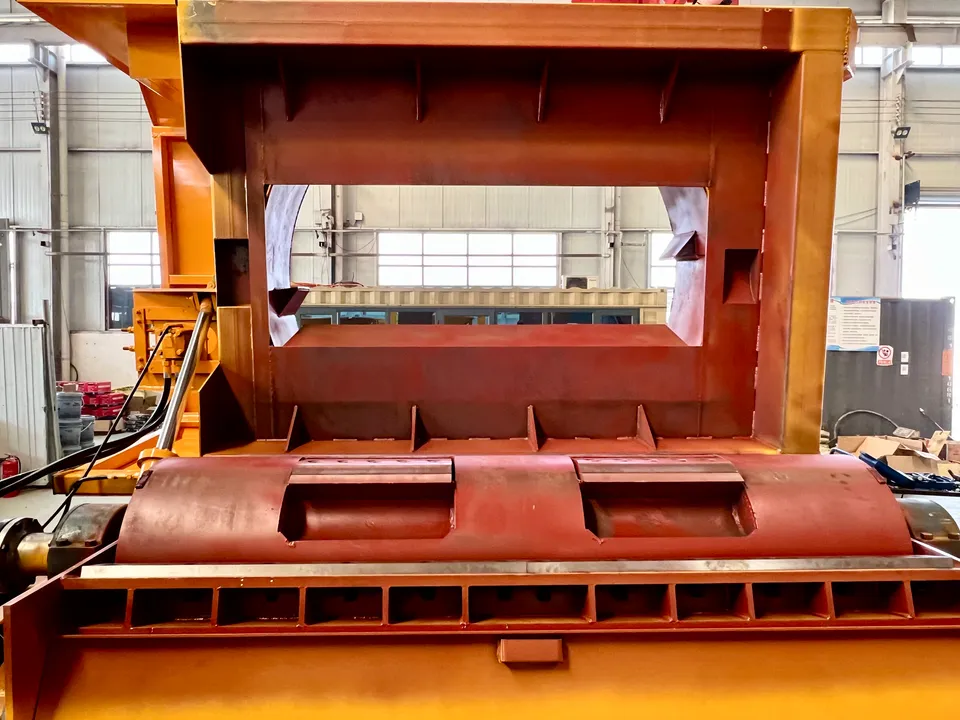

The knife rotor provides a cutting-based processing option for selected feedstocks and output requirements on a compatible 3600 Series grinder.
Includes the fully assembled rotor drum with precision-machined blade mounting grooves, ready for direct installation.
Blade mounting grooves are CNC-machined to exact tolerances, ensuring perfect blade alignment and consistent chip quality.
Each assembly is dynamically balanced at the factory to minimize vibration at operating speeds up to 960 RPM.

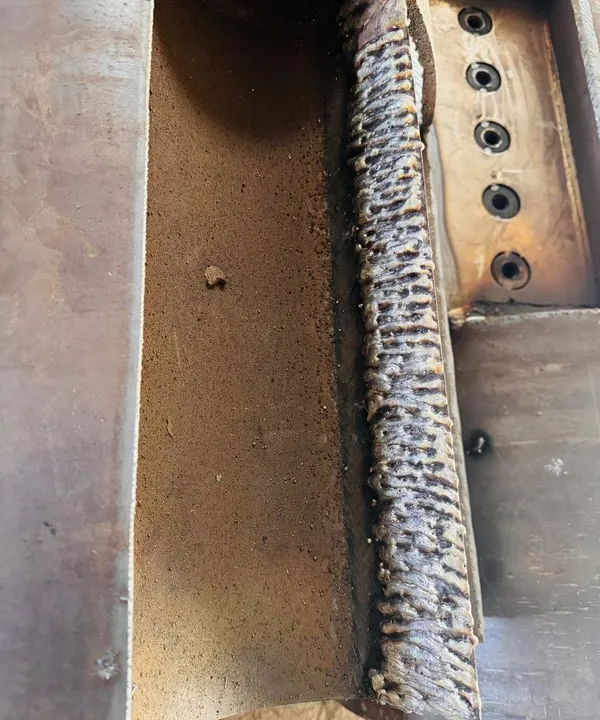

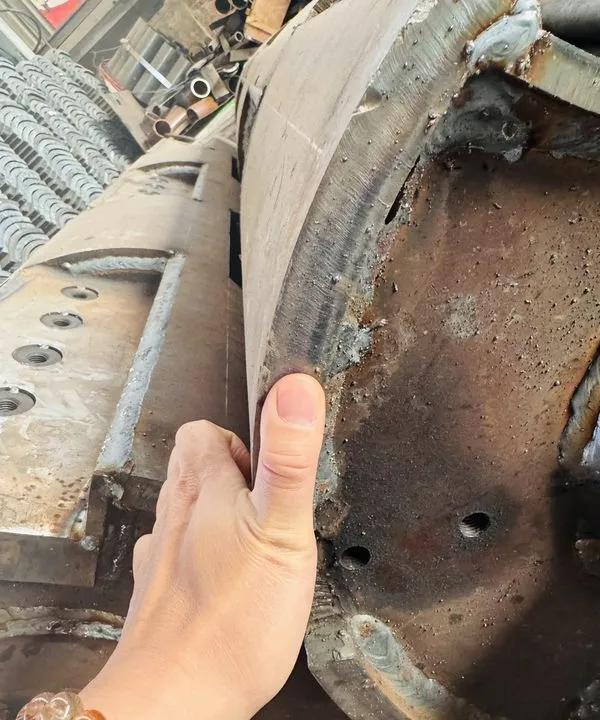

Manufactured from high-strength structural steel with reinforcement at critical stress points for long service life when handling high-volume feedstocks.
Bottom cutter seat pressure knife screw holes feature bushing nut inlay for easy replacement when threads wear over time.
No. Machine revision, chamber, shaft, bearing and drive interfaces must be confirmed.
It may suit applications requiring a cutting action and a selected output specification, subject to material testing and machine compatibility.
Provide the machine model, serial number, clear photos, installed assembly details, dimensions, required quantity and processed material. Compatibility is confirmed before quotation.
