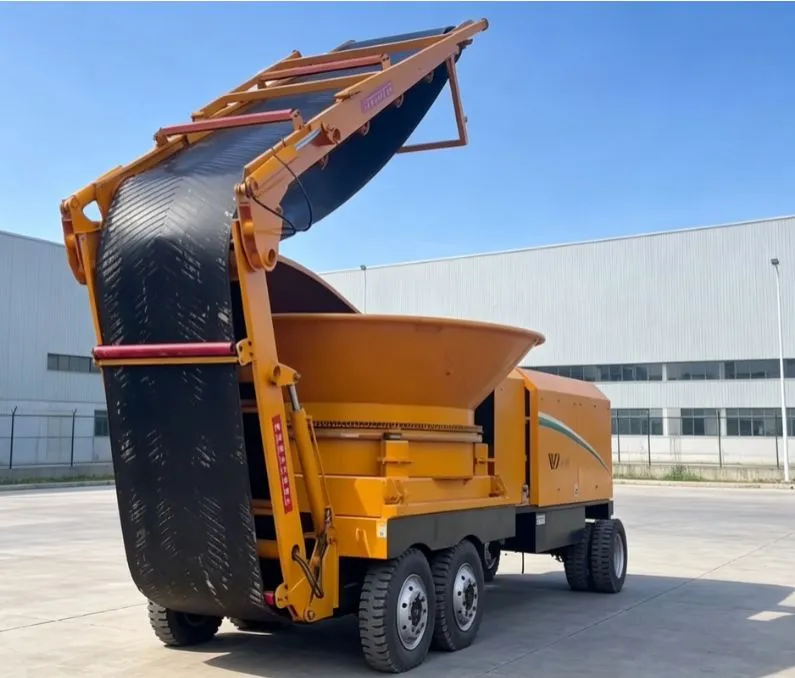

Road Wheeled Tub Grinder WD3600W

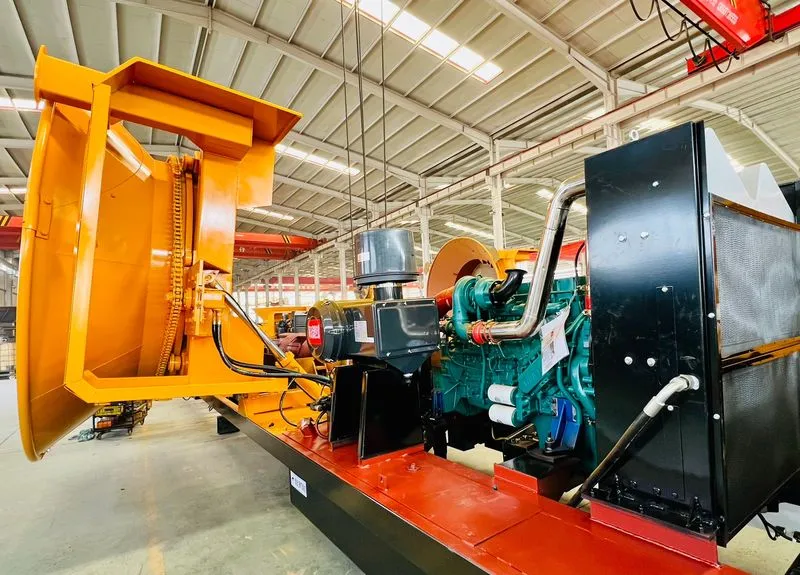

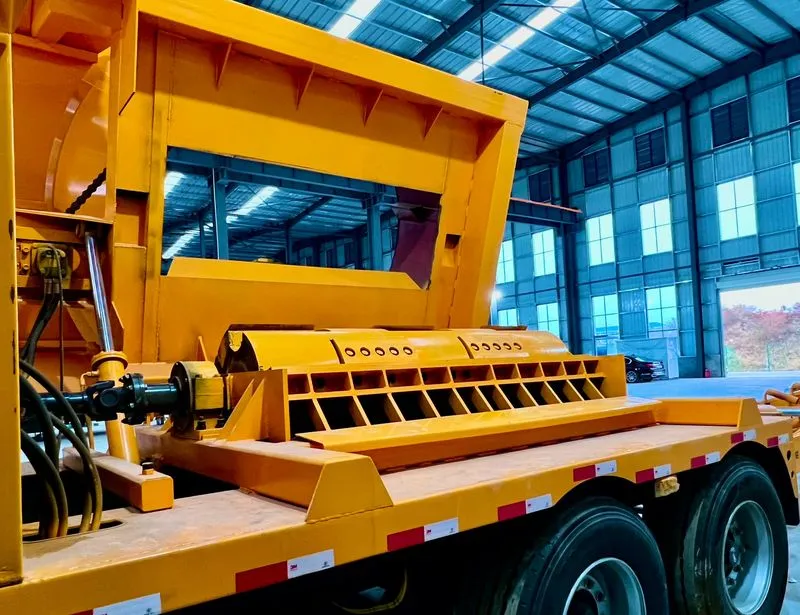

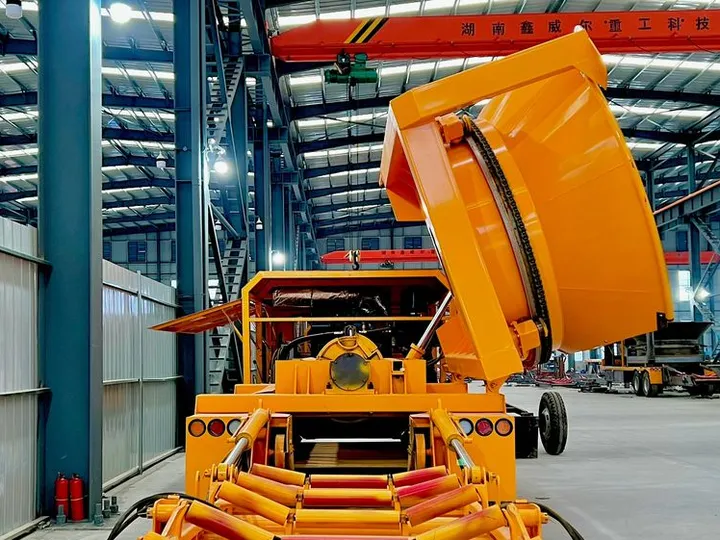

The WeiDong WD3600W is a diesel-powered, road-wheeled tub grinder for bulky and irregular wood and biomass material. Its open 3600 mm tub is suited to roots, stumps, branches, forestry residue and selected land-clearing waste. The wheeled chassis supports convenient transfer between prepared work sites.
- Capacity
- 25–40 t/h
- Power
- 408 kW
- Feed inlet
- Ø 3600 mm
- Weight
- 18 t
Technical specifications
| Item | Value |
|---|---|
| Model | WD3600W |
| Chassis Type | Road Wheeled (Self-Propelled) |
| Raw material | Tree roots, branches, straw, etc |
| Machine Size | 9000 mm × 2600 mm × 3500 mm |
| Machine Weight | 18 t |
| Capacity | 25–40 t/h |
| Engine Power | 408 kW |
| Inlet size | Ø 3600 mm |
| Cutting hole size | Ø 2350 mm |
| Feed tray depth | 1370 mm |
| Spindle working speed | 850 rpm |
| Fuel consumption rate | 20–40 L/h |
| Fuel tank volume | 420 L |
| Hydraulic tank volume | 420 L |

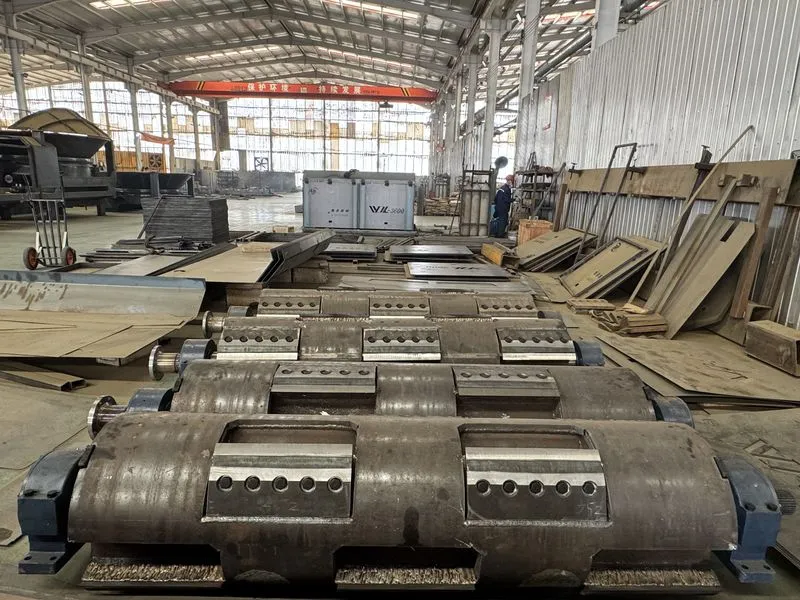

| Cutting roll size | 2200 mm × 670 mm |
| Cutter | 10 sets |
| Cutter size | 465 mm × 220 mm × 20 mm |
| Cutter screws | 5 pcs/knife |
| Number of bed knives | 2 set |
| Bed knife size | 1100 mm × 110 mm × 30 mm |
| Bottom cutter screws | 12 pcs |
Sizes and models
| Model | Mobility | Drive | Capacity | Power | Weight |
|---|---|---|---|---|---|
| WD3600C | Crawler | Diesel | 25–40 t/h | 408 kW | 21 t |
| WD3600M | Skid-mount | Diesel | 25–40 t/h | 408 kW | 15 t |
| WD3600S | Semi-trailer towable | Diesel | 25–40 t/h | 408 kW | 17 t |
| WD3600W | Road-wheeled | Diesel | 25–40 t/h | 408 kW | 18 t |
| WDE3600C | Crawler | Electric | 25–40 t/h | 355–400 kW (Configurable) | 21 t |
| WDE3600M | Skid-mount | Electric | 25–40 t/h | 355–400 kW (Configurable) | 15 t |
| WDE3600S | Semi-trailer towable | Electric | 25–40 t/h | 355–400 kW (Configurable) | 17 t |
| WDE3600W | Road-wheeled | Electric | 25–40 t/h | 355–400 kW (Configurable) | 18 t |
The WeiDong WD3600W tub grinder has a typical capacity of 25–40 t/h, 408 kW of installed power, a Ø 3600 mm feed inlet, a machine weight of 18 t and overall dimensions of 9000 mm × 2600 mm × 3500 mm. Rotor, screen and auxiliary equipment are confirmed for each project from the feed material, the required output size and the site conditions; actual throughput varies with material, moisture, contamination and feeding.
Why choose the WD3600W
Choose WD3600W when diesel independence and a road-wheeled chassis are more important than crawler mobility or a fixed plant installation. It keeps the 3600 Series tub platform while focusing on convenient site transfer.
Recommended applications
- Contractors transferring between prepared work sites
- Bulky roots, stumps and irregular forestry residue
- Projects without a permanent industrial power supply
Recommended feed materials
- Tree roots and stumps
- Branches and forestry residue
- Land-clearing wood waste
- Palm residues and selected bulky biomass
Materials to confirm before ordering
- Soil-contaminated root balls
- Pallets or construction wood containing metal
- Mixed waste with stone or non-wood contaminants
When another configuration fits better
- Soft or uneven ground requires crawler mobility
- The machine will remain in one fixed processing plant
- A stable industrial power supply makes electric drive preferable
Options confirmed for each project
- Knife or hammer rotor selected for the material
- Screen opening selected for target output

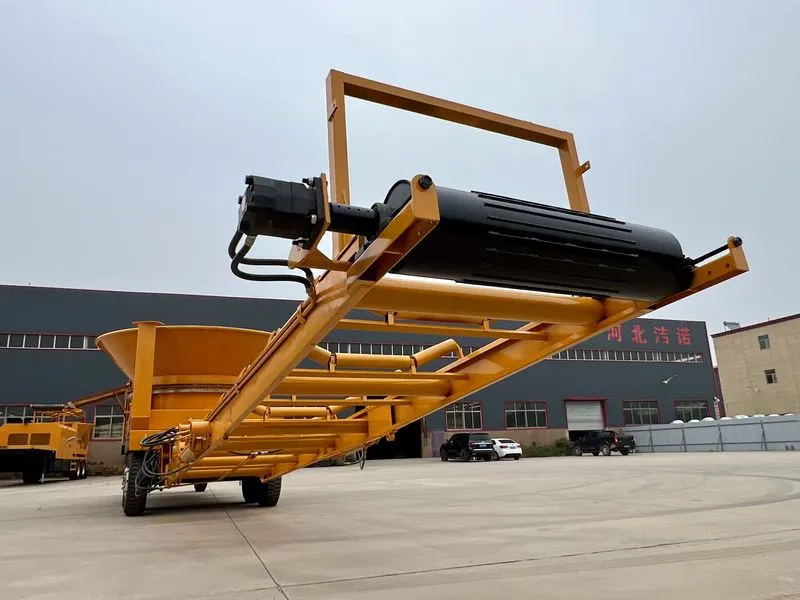

- Discharge conveyor and magnetic separation options
- Remote control and project-specific safety equipment
- Engine, motor and electrical brands subject to configuration
What changes actual capacity
- Feed material type, density and hardness
- Maximum piece size and feeding consistency
- Moisture content
- Soil, metal, stone and other contamination
- Rotor, cutter or hammer configuration
- Screen opening and required output size
- Operator practice and downstream material handling
Information needed for a quotation
- Material description, photos or a working video
- Maximum feed dimensions and typical piece size
- Moisture level and known contamination
- Required hourly throughput
- Target output size and downstream use
- Ground conditions and required mobility
- Available electrical supply for electric configurations
- Destination country and transport requirements
Performance note: Capacity and final particle size vary with feedstock type, moisture, contamination, rotor, screen and feeding conditions. Confirm the final configuration through material testing and the project specification.
Features and benefits
Diesel Drive
Independent power for mobile field work and sites without a permanent electrical supply.
Road Wheeled
Frequent site transfer on a wheeled mobile chassis. Public-road registration and operation depend on local regulations.

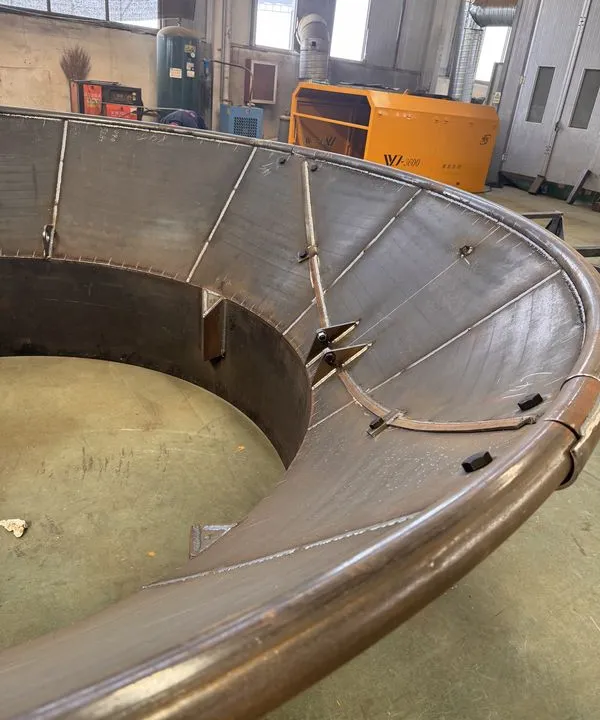

Ø 3600 mm tub platform
The platform has a Ø 3600 mm inlet and a typical capacity of 25–40 t/h. Actual performance depends on material and setup.
Videos
WD3600 tub grinder from above
WD3600 tub grinder chassis options: crawler, skid, trailer and wheeled
WD3600 tub grinder processing wood waste
Applications
Composting and Organic Fertilizer
Preparing woody compost feedstock, bulking agents and organic-fertilizer carbon sources from green waste, branches and crop residue.

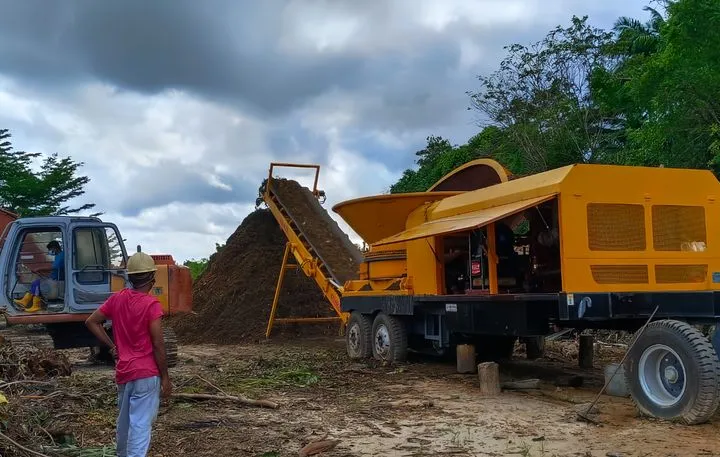

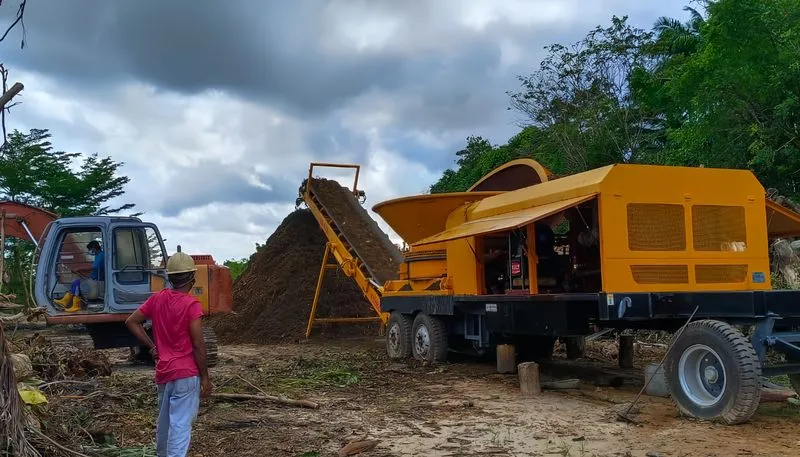

Land Clearing: Roots, Stumps and Debris
Processing stumps, root balls, brush and mixed land-clearing debris on site to cut hauling volume and open the site faster.
Forestry and Logging Residue
Grinding logging slash, whole trees and forestry residue at the landing or roadside into transportable biomass.
Green Waste, Mulch and Municipal Wood
Processing municipal tree work, park and garden waste and brush into mulch, compost feedstock or fuel.
Storm and Disaster Debris
Reducing fallen trees, branches and root balls after storms and hurricanes, with controls for hidden metal and mixed debris.
Palm Oil Plantation Residue (EFB, Trunks, Fronds)
Processing empty fruit bunches, oil-palm trunks and fronds on Southeast Asian plantations for compost, fuel or field reuse.
Orchard Prunings and Agricultural Residue
Processing orchard prunings, removed fruit trees, vine and olive wood, straw and crop residue into mulch, fuel or compost.
Frequently asked questions
What does the W in WD3600W mean?
W identifies the road-wheeled chassis. It describes the mobility format, not automatic permission for public-road use.
Can WD3600W process tree roots and stumps?
Yes. Bulky roots and stumps are typical tub-grinder feed materials, but soil, stone, metal and maximum piece size must be reviewed before final configuration.
Is the rated capacity guaranteed for every material?
The rated capacity of WD3600W is 25–40 t/h, but it is a typical or configured value rather than a guarantee for every feed material. Actual throughput depends on feedstock, moisture, contamination, rotor, screen and feeding conditions.
What information is required before configuring this machine?
Provide material photos or video, maximum feed size, moisture and contamination, required throughput, target output, site conditions, mobility needs and the destination electrical supply where applicable.
