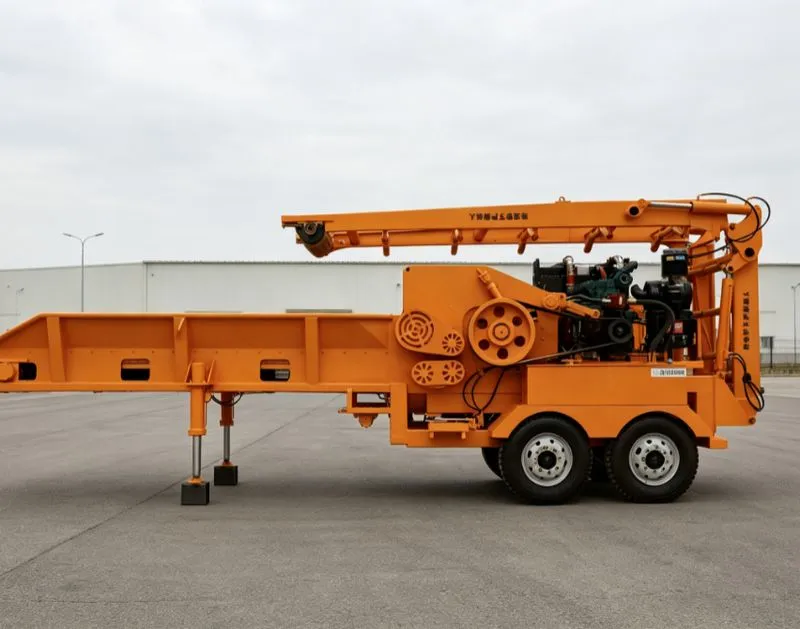

1690 Electric Road Wheeled Horizontal Grinder WDE1690W

The WDE1690W combines a controlled horizontal infeed system with WeiDong’s 1690-series grinding platform. Its road wheeled (self-propelled) configuration is designed for mobile operations and convenient site transfer. The listed 360 kW Electric power configuration supports the main grinding system, while hydraulic auxiliary systems control functions such as feeding and discharge. The 1620 x 640 mm inlet is designed for long wood, branches, forestry residue, and prepared biomass feedstock. Actual throughput and finished particle size depend on feed material, moisture, contamination, rotor selection, screen configuration, and feeding conditions. Final transport, electrical, emissions, and public-road requirements are confirmed for each order and destination market.

Why choose the WDE1690W

Choose WDE1690W when the 1690 platform is required, the site has suitable industrial power and movement remains within a planned cable area. It is not a substitute for unrestricted diesel field mobility.

Recommended applications

• Large powered yards with prepared surfaces
• Controlled processing of long wood and forestry residue
• Projects needing wheeled repositioning within an electrical area

Recommended feed materials

• Long wood and large branches
• Forestry residue
• Sawmill and pallet waste after contamination review
• Prepared biomass feedstock

Materials to confirm before ordering

• Large irregular stumps better suited to tub feeding
• Construction wood containing metal
• Material with heavy soil or stone contamination

When another configuration fits better

• The site cannot provide the required electrical capacity
• Soft ground requires crawler mobility
• The smaller 1380 diesel platform can meet the project

Options confirmed for each project

• Rotor and screen selected for the feedstock

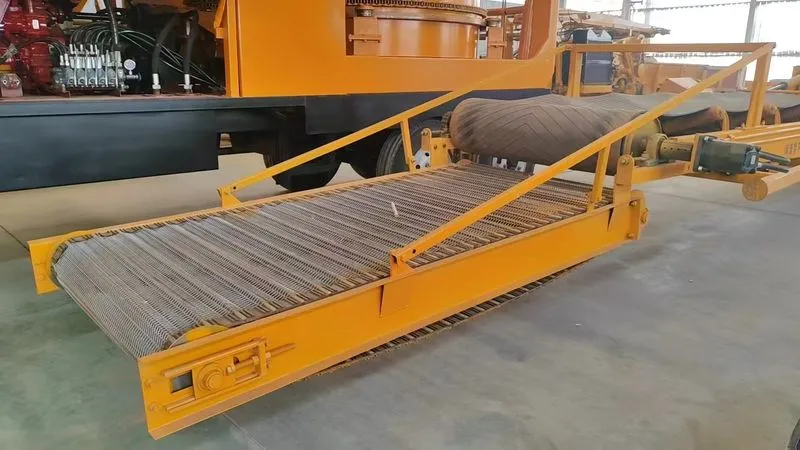

• Feed conveyor and discharge arrangement
• Magnetic separation where metal contamination is expected
• Remote control and project-specific safety equipment
• Engine, motor and electrical brands subject to configuration

What changes actual capacity

• Feed material type, density and hardness
• Maximum piece size and feeding consistency
• Moisture content
• Soil, metal, stone and other contamination

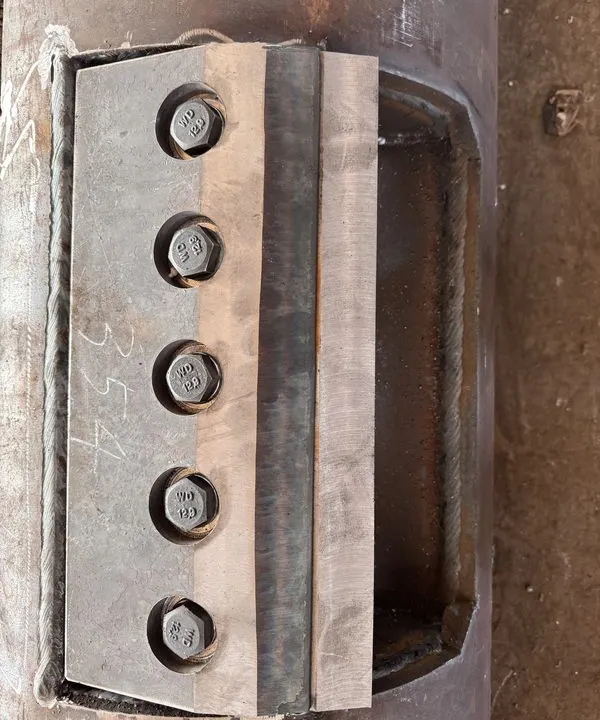

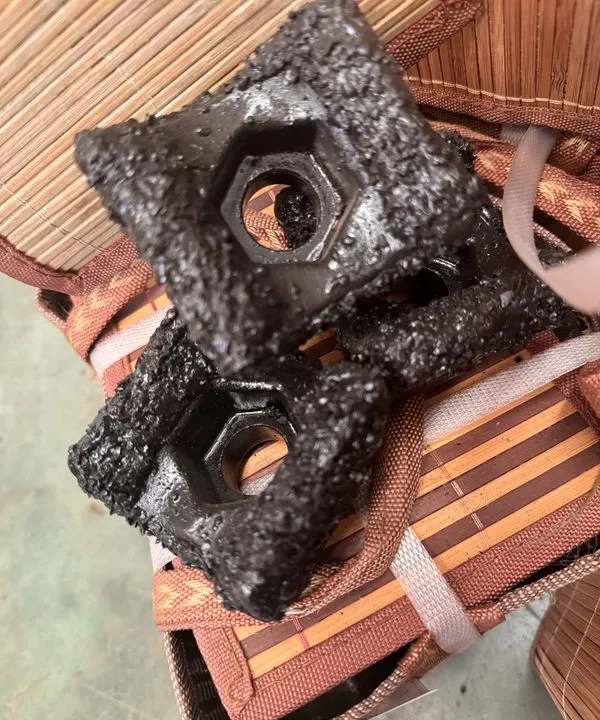

• Rotor, cutter or hammer configuration
• Screen opening and required output size
• Operator practice and downstream material handling

Information needed for a quotation

1. Material description, photos or a working video
2. Maximum feed dimensions and typical piece size
3. Moisture level and known contamination
4. Required hourly throughput
5. Target output size and downstream use
6. Ground conditions and required mobility
7. Available electrical supply for electric configurations
8. Destination country and transport requirements

Performance note: Capacity and final particle size vary with feedstock type, moisture, contamination, rotor, screen and feeding conditions. Confirm the final configuration through material testing and the project specification.
