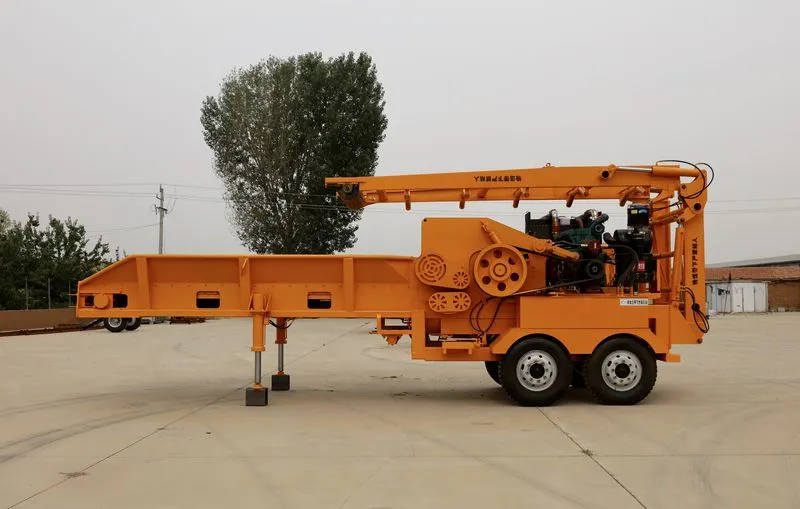

1380 Road Wheeled Horizontal Grinder WD1380W

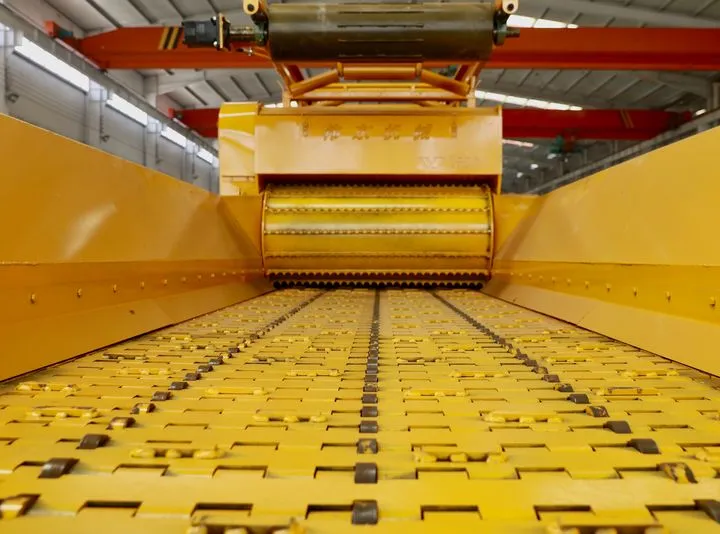

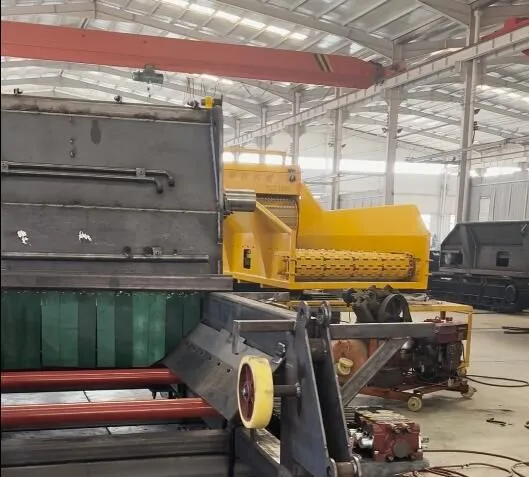

The WD1380W combines a controlled horizontal infeed system with WeiDong’s 1380-series grinding platform. Its road wheeled (self-propelled) configuration is designed for mobile operations and convenient site transfer. The listed 368 kW / 500HP power configuration supports the main grinding system, while hydraulic auxiliary systems control functions such as feeding and discharge. The 1320 x 530 mm inlet is designed for long wood, branches, forestry residue, and prepared biomass feedstock. Actual throughput and finished particle size depend on feed material, moisture, contamination, rotor selection, screen configuration, and feeding conditions. Final transport, electrical, emissions, and public-road requirements are confirmed for each order and destination market.

Why choose the WD1380W

Choose WD1380W when a smaller horizontal grinder can meet the feed dimensions and target production. It offers road-wheeled mobility without moving to the larger 1690 platform.

Recommended applications

• Medium-scale forestry and recycling work
• Prepared sites requiring a compact wheeled machine
• Longer material that benefits from controlled horizontal feeding

Recommended feed materials

• Branches and elongated wood
• Sawmill offcuts
• Forestry residue
• Prepared biomass feedstock

Materials to confirm before ordering

• Large irregular root balls
• Construction wood containing metal
• Material with heavy soil or stone contamination

When another configuration fits better

• Feed dimensions or production targets require the 1690 platform
• Soft ground requires crawler mobility
• Bulky irregular roots are the main feed material

Options confirmed for each project

• Rotor and screen selected for the feedstock
• Feed conveyor and discharge arrangement
• Magnetic separation where metal contamination is expected
• Project-specific engine and control options

What changes actual capacity

• Feed material type, density and hardness
• Maximum piece size and feeding consistency
• Moisture content
• Soil, metal, stone and other contamination

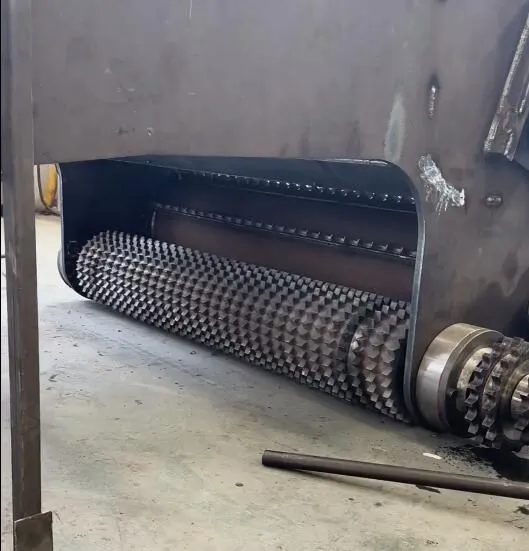

• Rotor, cutter or hammer configuration
• Screen opening and required output size
• Operator practice and downstream material handling

Information needed for a quotation

1. Material description, photos or a working video
2. Maximum feed dimensions and typical piece size
3. Moisture level and known contamination
4. Required hourly throughput
5. Target output size and downstream use
6. Ground conditions and required mobility
7. Available electrical supply for electric configurations
8. Destination country and transport requirements

Performance note: Capacity and final particle size vary with feedstock type, moisture, contamination, rotor, screen and feeding conditions. Confirm the final configuration through material testing and the project specification.
