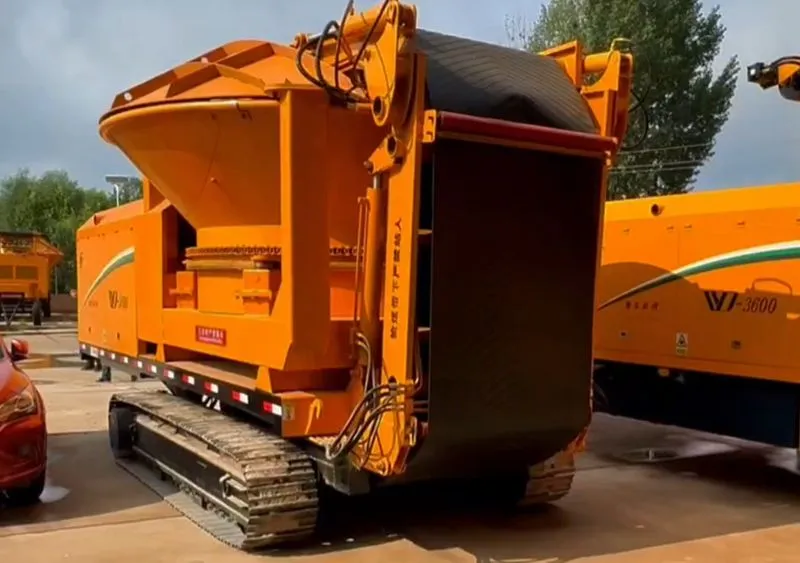

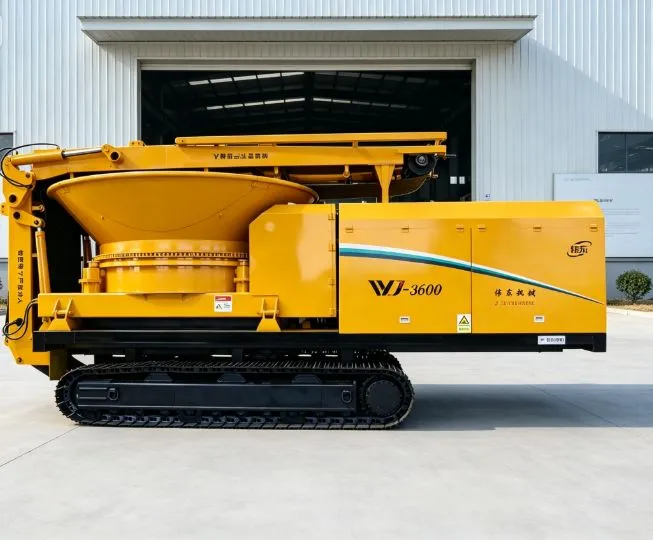

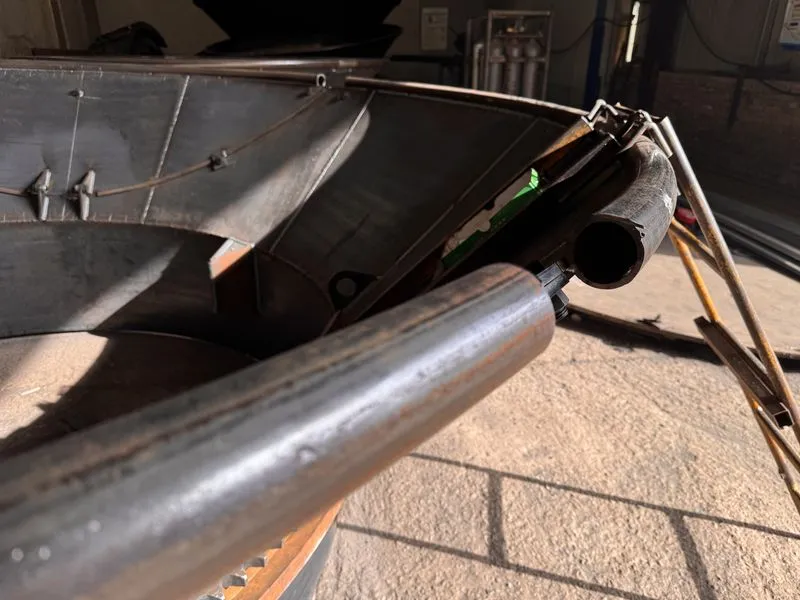

Electric Crawler Tub Grinder WDE3600C
The WeiDong WDE3600C combines an electric 3600 Series tub grinder with crawler mobility for powered sites that require repositioning on uneven ground. It is intended for bulky roots, stumps, branches and selected biomass within a planned electrical operating area.
- Capacity
- 25–40 t/h
- Power
- 355–400 kW (Configurable)
- Feed inlet
- Ø 3600 mm
- Weight
- 21 t
Technical specifications
| Item | Value |
|---|---|
| Model | WDE3600C |
| Raw material | Tree roots, branches, straw, etc |
| Machine Size | 7500 mm × 2600 mm × 3500 mm |
| Machine Weight | 21 t |
| Capacity | 25–40 t/h |
| Inlet size | Ø 3600 mm |
| Cutting hole size | Ø 2350 mm |
| Feed tray depth | 1370 mm |
| Spindle working speed | 850 rpm |
| Main Motor Power | 355–400 kW (Configurable) |
| Motor Brand | Project-specific; multiple brands available |
| Power Supply | Project-specific voltage and frequency |
| Auxiliary Motor Power | Confirmed with final hydraulic and conveyor configuration |
| Hydraulic tank volume | 420 L |

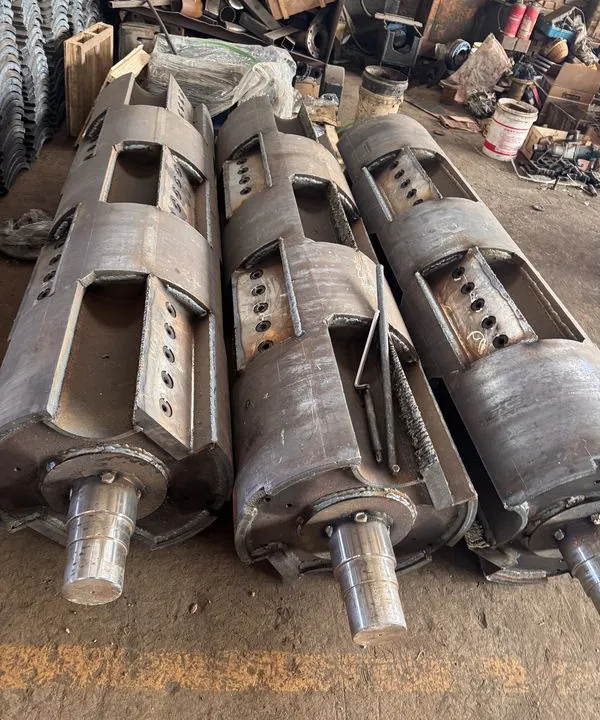

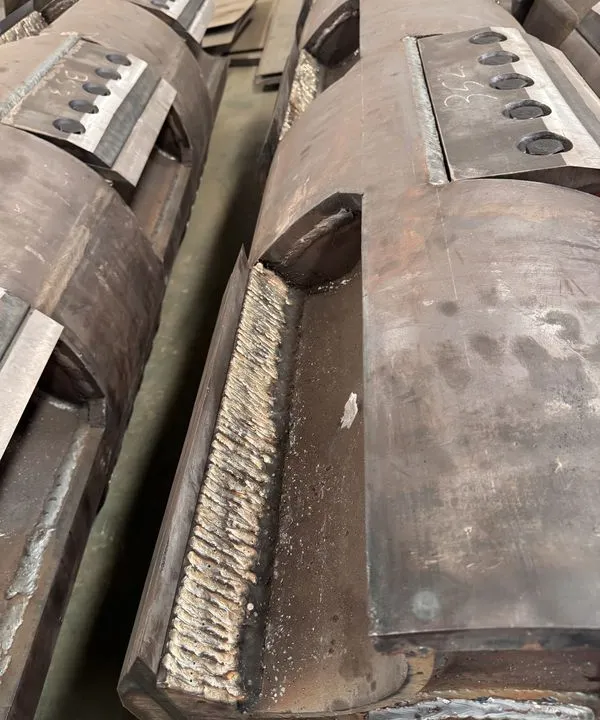

| Cutting roll size | 2200 mm × 670 mm |
| Cutter | 10 sets |
| Cutter size | 465 mm × 220 mm × 20 mm |
| Cutter screws | 5 pcs/knife |
| Number of bed knives | 2 set |

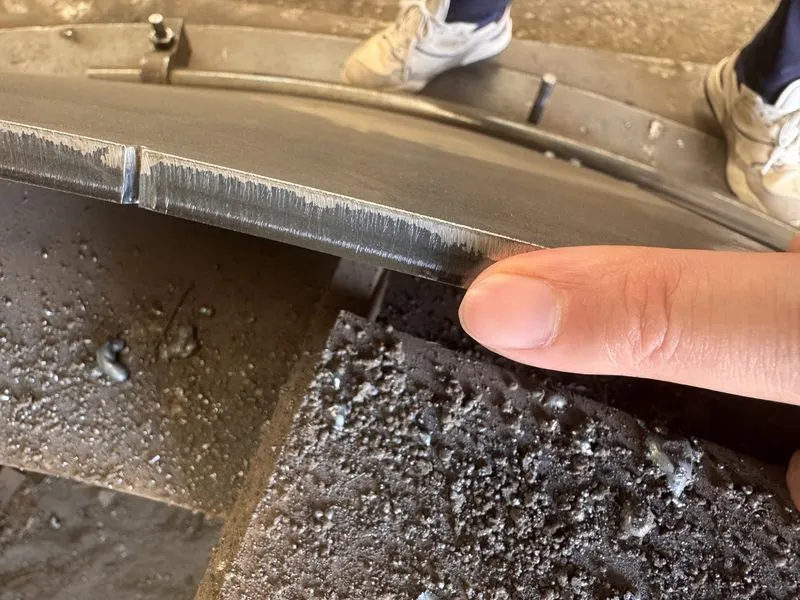

| Bed knife size | 1100 mm × 110 mm × 30 mm |
| Bottom cutter screws | 12 pcs |
Sizes and models
| Model | Mobility | Drive | Capacity | Power | Weight |
|---|---|---|---|---|---|
| WD3600C | Crawler | Diesel | 25–40 t/h | 408 kW | 21 t |
| WD3600M | Skid-mount | Diesel | 25–40 t/h | 408 kW | 15 t |
| WD3600S | Semi-trailer towable | Diesel | 25–40 t/h | 408 kW | 17 t |
| WD3600W | Road-wheeled | Diesel | 25–40 t/h | 408 kW | 18 t |
| WDE3600C | Crawler | Electric | 25–40 t/h | 355–400 kW (Configurable) | 21 t |
| WDE3600M | Skid-mount | Electric | 25–40 t/h | 355–400 kW (Configurable) | 15 t |
| WDE3600S | Semi-trailer towable | Electric | 25–40 t/h | 355–400 kW (Configurable) | 17 t |
| WDE3600W | Road-wheeled | Electric | 25–40 t/h | 355–400 kW (Configurable) | 18 t |
The WDE3600C combines the WeiDong 3600 Series grinding platform with a crawler configuration. A reference main grinding motor range of 355–400 kW is used for project selection. The final motor brand, rated power, voltage, frequency, starter or VFD arrangement, and auxiliary motor ratings are confirmed against the feedstock, target output and site electrical infrastructure. Rated capacity is a typical 25–40 t/h and varies with material, moisture, contamination, rotor, screen and feeding conditions.
Why choose the WDE3600C
Choose WDE3600C when both electric main power and crawler positioning are required. The configuration is most effective where electrical infrastructure can safely follow the planned operating area.
Recommended applications
- Powered sites with uneven or unprepared working surfaces
- Frequent short-distance repositioning inside a defined area
- Bulky irregular feed material requiring tub feeding
Recommended feed materials
- Tree roots and stumps
- Branches and forestry residue
- Land-clearing wood waste
- Palm residues and selected bulky biomass
Materials to confirm before ordering
- Soil-contaminated root balls
- Pallets or construction wood containing metal
- Mixed waste with stone or non-wood contaminants
When another configuration fits better
- The machine must roam beyond a practical cable area
- Long-distance towing is the main transport requirement
- The site does not have a reliable industrial power supply
Options confirmed for each project
- Knife or hammer rotor selected for the material
- Screen opening selected for target output
- Discharge conveyor and magnetic separation options
- Remote control and project-specific safety equipment
- Engine, motor and electrical brands subject to configuration
What changes actual capacity
- Feed material type, density and hardness
- Maximum piece size and feeding consistency
- Moisture content
- Soil, metal, stone and other contamination
- Rotor, cutter or hammer configuration
- Screen opening and required output size
- Operator practice and downstream material handling
Information needed for a quotation
- Material description, photos or a working video
- Maximum feed dimensions and typical piece size
- Moisture level and known contamination
- Required hourly throughput
- Target output size and downstream use
- Ground conditions and required mobility
- Available electrical supply for electric configurations
- Destination country and transport requirements
Performance note: Capacity and final particle size vary with feedstock type, moisture, contamination, rotor, screen and feeding conditions. Confirm the final configuration through material testing and the project specification.
Features and benefits
Electric Drive
Best suited to facilities with a stable industrial power supply and planned electrical infrastructure.
Crawler

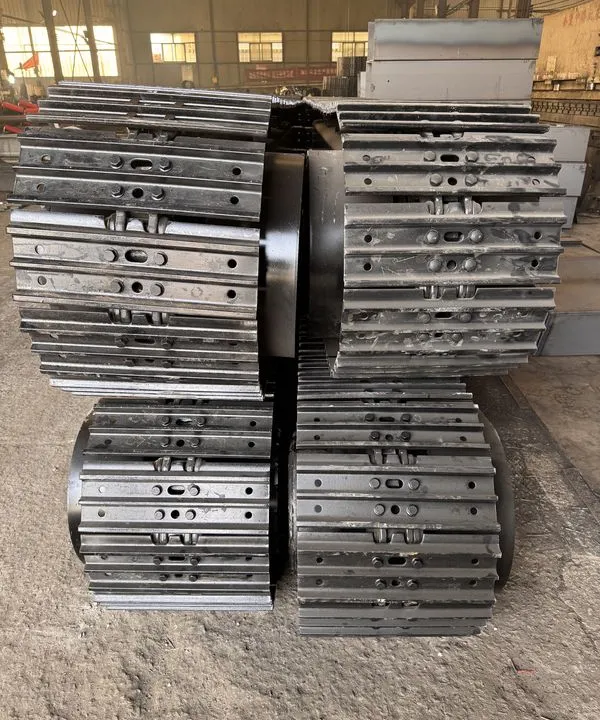

Self-propelled crawler mobility for uneven ground and frequent repositioning within the job site.
Ø 3600 mm tub platform
The platform has a Ø 3600 mm inlet and a typical capacity of 25–40 t/h. Actual performance depends on material and setup.
Videos
WD3600 tub grinder from above
WDE3600 electric tub grinder in industrial wood recycling
WDE3600 electric tub grinder on a customer site
Applications
Land Clearing: Roots, Stumps and Debris
Processing stumps, root balls, brush and mixed land-clearing debris on site to cut hauling volume and open the site faster.
Forestry and Logging Residue
Grinding logging slash, whole trees and forestry residue at the landing or roadside into transportable biomass.
Palm Oil Plantation Residue (EFB, Trunks, Fronds)
Processing empty fruit bunches, oil-palm trunks and fronds on Southeast Asian plantations for compost, fuel or field reuse.
Frequently asked questions
Can WDE3600C move while connected to power?
Movement is limited by the engineered cable route and site safety procedure. The final cable handling and isolation method must be confirmed for the project.
When is electric crawler mobility useful?
It suits powered yards where the grinder must reposition on uneven surfaces but does not need unrestricted field mobility.
Is the rated capacity guaranteed for every material?
The rated capacity of WDE3600C is 25–40 t/h, but it is a typical or configured value rather than a guarantee for every feed material. Actual throughput depends on feedstock, moisture, contamination, rotor, screen and feeding conditions.
What information is required before configuring this machine?
Provide material photos or video, maximum feed size, moisture and contamination, required throughput, target output, site conditions, mobility needs and the destination electrical supply where applicable.
