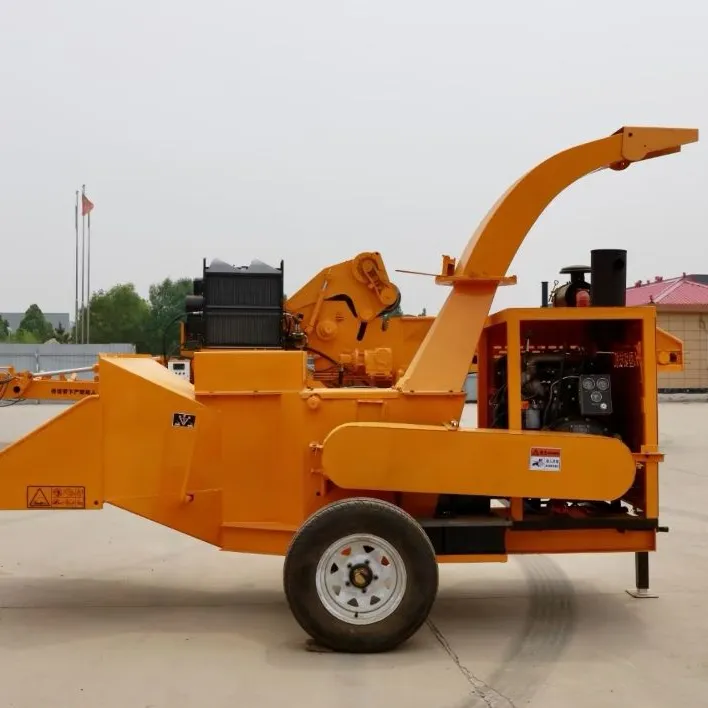

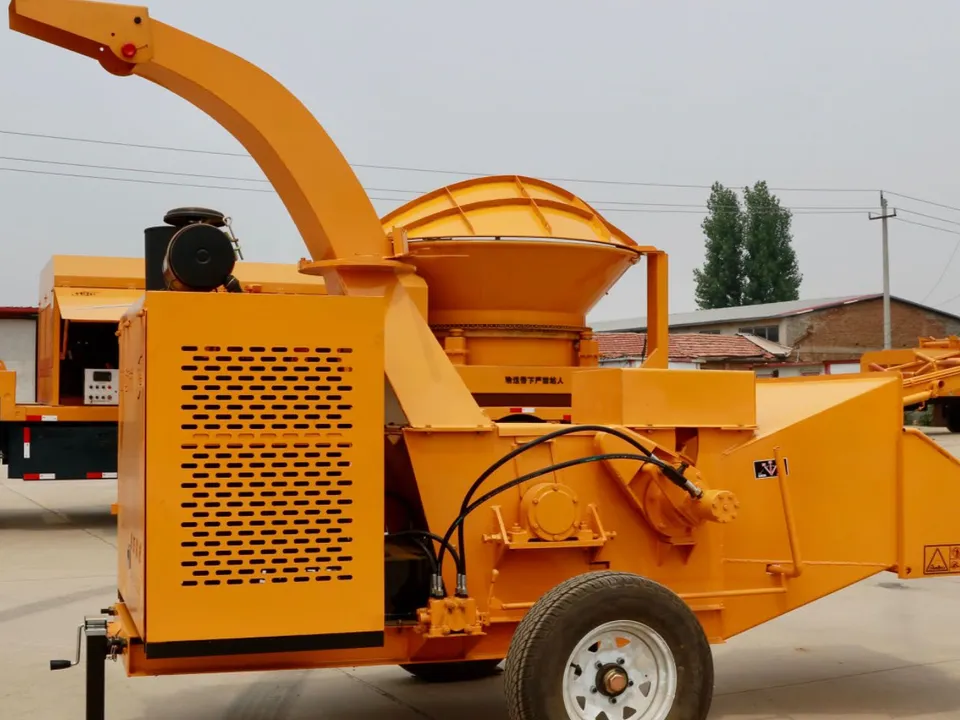

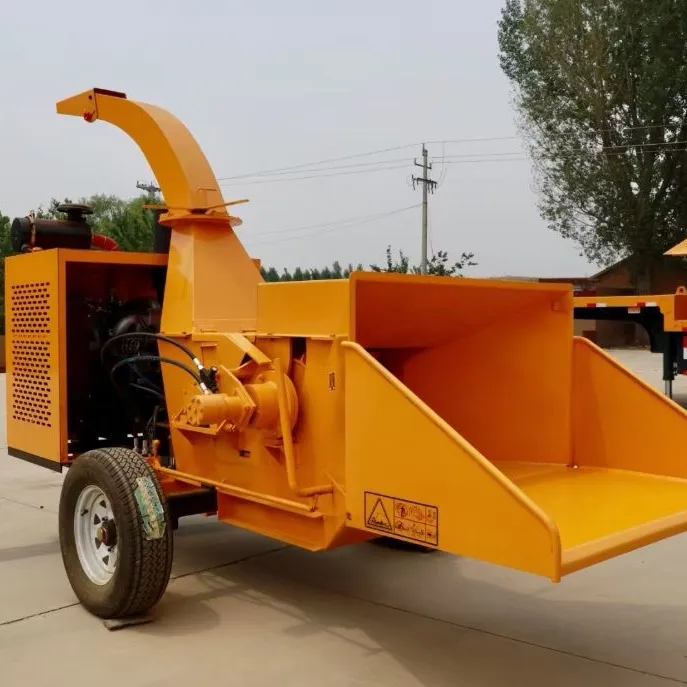

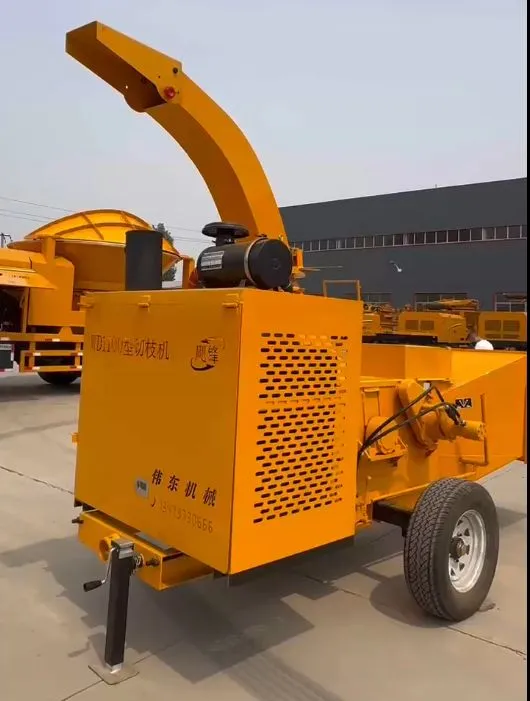

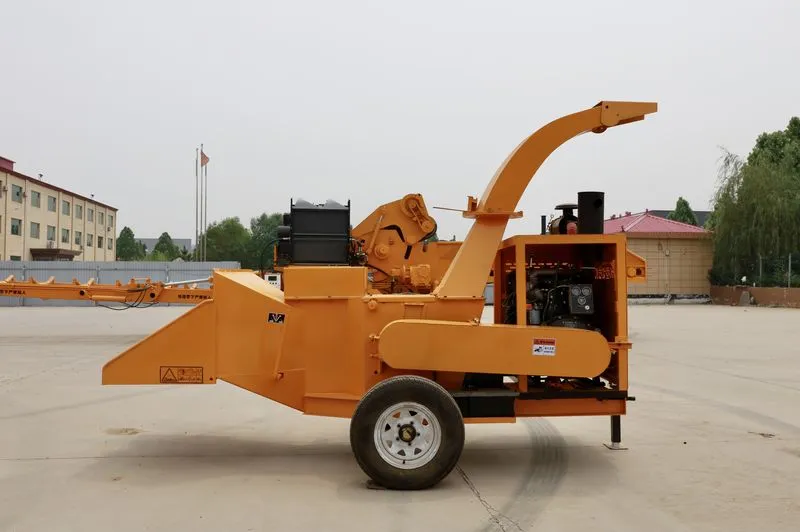

Wood Chipper WD1100
The WeiDong WD1100 is a diesel wood chipper for branches, bamboo, orchard pruning and clean green wood within the confirmed inlet limits. It uses cutting blades to produce chips rather than the more irregular shredded output of a grinder.
- Capacity
- 3–6 t/h
- Power
- 76 kW
- Feed inlet
- 400 mm × 400 mm
- Weight
- 2 t
Technical specifications
| Item | Value |
|---|---|
| Model | WD1100 |
| Dimensions | 3120 mm × 1930 mm × 2740 mm |
| Weight | 2 t |
| Engine power | 76 kW |
| Capacity | 3–6 t/h |
| Fuel tank volume | 50 L |
| Hydraulic tank volume | 40 L |
| Inlet size | 400 mm × 400 mm |
Sizes and models
| Model | Mobility | Drive | Capacity | Power | Weight |
|---|---|---|---|---|---|
| WD1100 | — | Diesel | 3–6 t/h | 76 kW | 2 t |
| WDE1100 | — | Electric | 3–6 t/h | 76 kW | 2 t |
The WeiDong WD1100 wood chipper has a typical capacity of 3–6 t/h, 76 kW of installed power, a 400 mm × 400 mm feed inlet, a machine weight of 2 t and overall dimensions of 3120 mm × 1930 mm × 2740 mm. Rotor, screen and auxiliary equipment are confirmed for each project from the feed material, the required output size and the site conditions; actual throughput varies with material, moisture, contamination and feeding.
Why choose the WD1100
Choose WD1100 when the feed is relatively clean branch material and the project needs chips rather than grinder output. For dirty mixed wood, roots or demolition material, a grinder should be reviewed instead.
Recommended applications
- Landscaping and municipal branch processing
- Orchard pruning and bamboo
- Mobile work without industrial power
Recommended feed materials
- Pruned branches
- Bamboo and similar elongated material
- Orchard and landscaping residue
- Clean green wood within the confirmed inlet limits
Materials to confirm before ordering
- Dirty demolition wood
- Roots containing soil or stones
- Material containing metal
When another configuration fits better
- Bulky roots or stumps are the main feed material
- The material contains metal, stone or heavy soil
- A fixed powered site is better served by WDE1100
Options confirmed for each project
- Blade and anvil setup for the target chip specification
- Feed and discharge arrangement
- Diesel or destination-specific electrical configuration
- Project-specific controls and safety equipment
What changes actual capacity
- Feed material type, density and hardness
- Maximum piece size and feeding consistency
- Moisture content
- Soil, metal, stone and other contamination
- Rotor, cutter or hammer configuration
- Screen opening and required output size
- Operator practice and downstream material handling
Information needed for a quotation
- Material description, photos or a working video
- Maximum feed dimensions and typical piece size
- Moisture level and known contamination
- Required hourly throughput
- Target output size and downstream use
- Ground conditions and required mobility
- Available electrical supply for electric configurations
- Destination country and transport requirements
Performance note: Capacity and final particle size vary with feedstock type, moisture, contamination, rotor, screen and feeding conditions. Confirm the final configuration through material testing and the project specification.
Features and benefits
Diesel Drive
Independent power for mobile field work and sites without a permanent electrical supply.

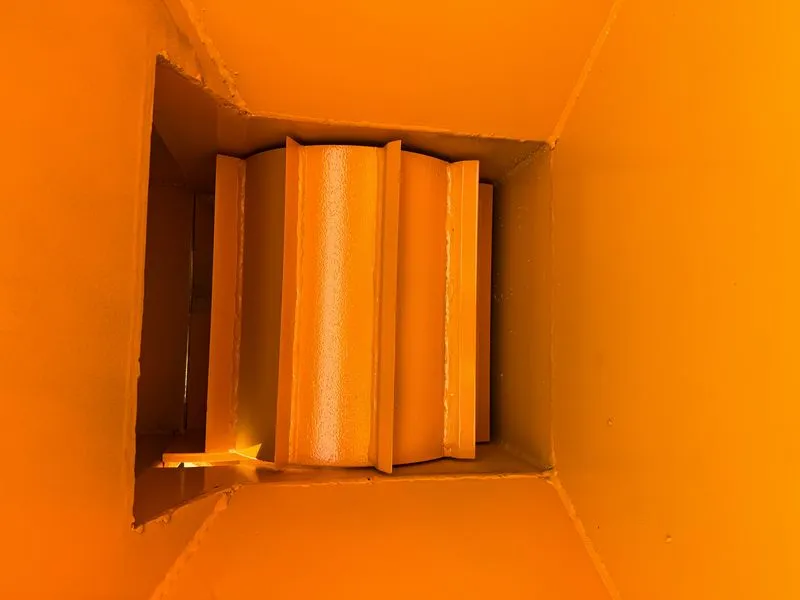

Rotary Drum Cutting Design
A rugged rotating drum fitted with stationary blades converts logs into chips in a single pass. The drum's mass and geometry dampen vibration and maintain stability during high-volume operation.
Customizable Discharge Particle Range
You can control final chip dimensions simply by swapping the sizing screen. This flexibility lets you match the output to your next process step, such as biomass fuel or particle board manufacturing.
Versatile Material Intake Setup
Accepts material via gravity chute or belt conveyor with equal ease. That adaptability makes it straightforward to incorporate into current production lines or mobile forestry setups.

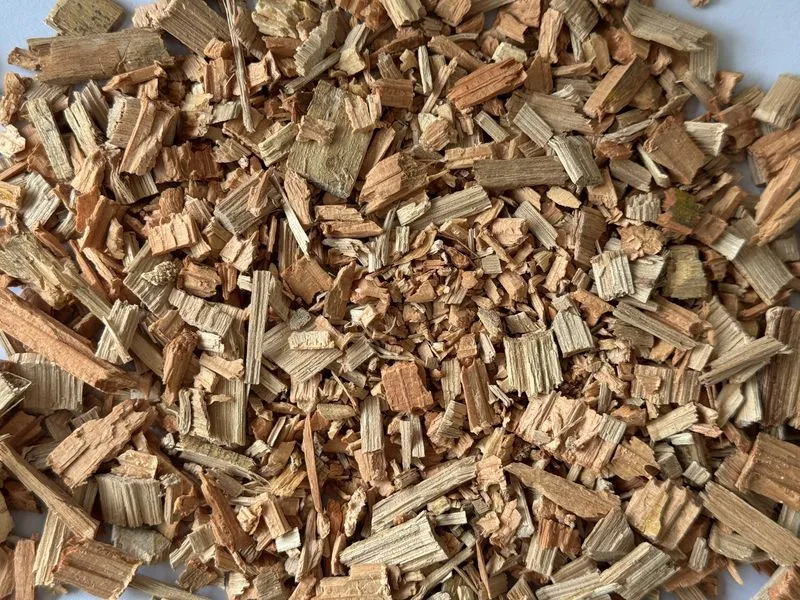

Uniform Chip Output Standard
Delivers consistently sized chips with very few fines or oversize particles, boosting downstream efficiency whether the material goes to pulping, pelletizing, or direct combustion.
Videos
WD1100 towable wood chipper
WD1100 mobile diesel drum chipper, 3–6 t/h
WD1100 wood chipper processing branches and logs
Applications
Green Waste, Mulch and Municipal Wood
Processing municipal tree work, park and garden waste and brush into mulch, compost feedstock or fuel.
Palm Oil Plantation Residue (EFB, Trunks, Fronds)
Processing empty fruit bunches, oil-palm trunks and fronds on Southeast Asian plantations for compost, fuel or field reuse.
Orchard Prunings and Agricultural Residue
Processing orchard prunings, removed fruit trees, vine and olive wood, straw and crop residue into mulch, fuel or compost.
Frequently asked questions
What is the difference between WD1100 and a wood grinder?
WD1100 cuts relatively clean branches into chips. A grinder uses hammers or cutters for a broader range of irregular and contaminated feed materials.
Can WD1100 process roots with soil?
It is not the preferred application. Soil and stones can damage chipper blades; a grinder configuration should be reviewed for contaminated roots.
Is the rated capacity guaranteed for every material?
The rated capacity of WD1100 is 3–6 t/h, but it is a typical or configured value rather than a guarantee for every feed material. Actual throughput depends on feedstock, moisture, contamination, rotor, screen and feeding conditions.
What information is required before configuring this machine?
Provide material photos or video, maximum feed size, moisture and contamination, required throughput, target output, site conditions, mobility needs and the destination electrical supply where applicable.
