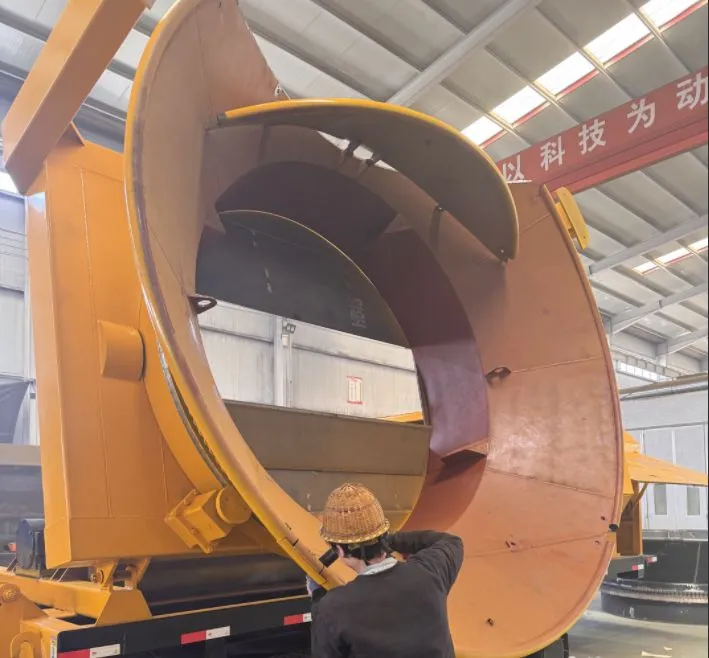

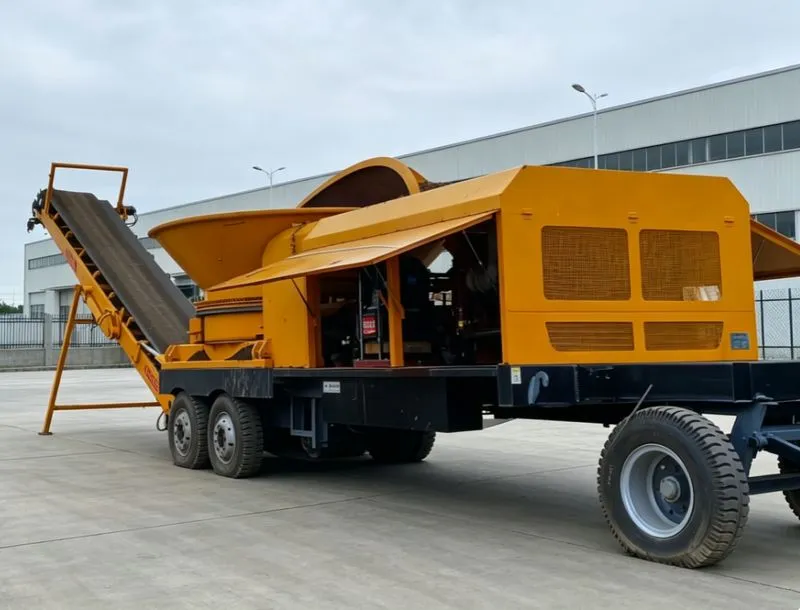

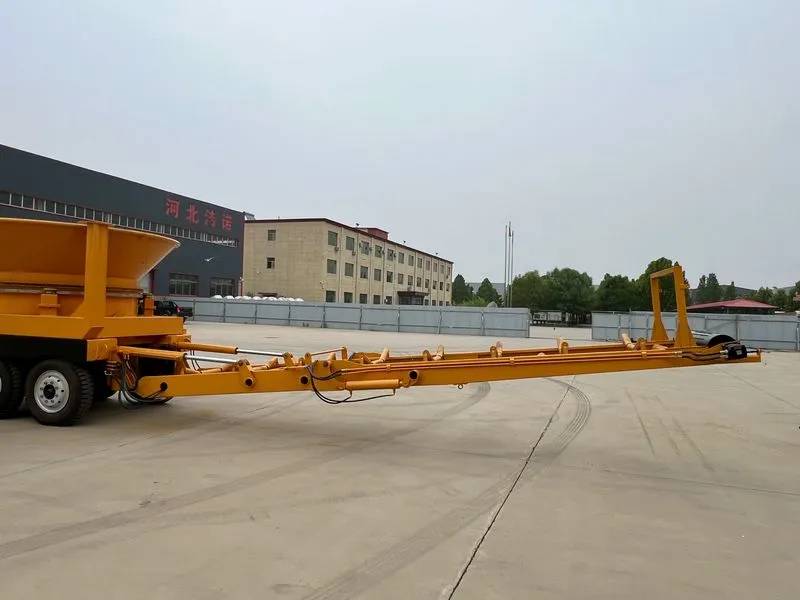

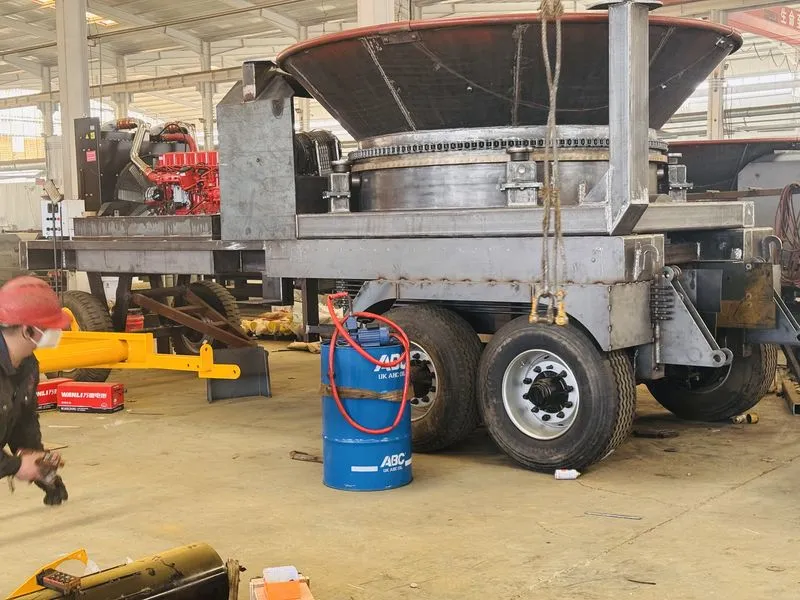

Electric Road Wheeled Tub Grinder WDE3600W
The WeiDong WDE3600W is an electric, road-wheeled tub grinder for powered recycling yards and biomass sites that want a movable chassis without a diesel main grinding engine. The 3600 mm tub handles bulky roots, stumps, branches and selected biomass.
- Capacity
- 25–40 t/h
- Power
- 355–400 kW (Configurable)
- Feed inlet
- Ø 3600 mm
- Weight
- 18 t
Technical specifications
| Item | Value |
|---|---|
| Model | WDE3600W |
| Chassis Type | Road Wheeled (Self-Propelled) |
| Raw material | Tree roots, branches, straw, etc |
| Machine Size | 9000 mm × 2600 mm × 3500 mm |
| Machine Weight | 18 t |
| Capacity | 25–40 t/h |
| Inlet size | Ø 3600 mm |
| Cutting hole size | Ø 2350 mm |
| Feed tray depth | 1370 mm |
| Spindle working speed | 850 rpm |
| Main Motor Power | 355–400 kW (Configurable) |
| Motor Brand | Project-specific; multiple brands available |
| Power Supply | Project-specific voltage and frequency |
| Auxiliary Motor Power | Confirmed with final hydraulic and conveyor configuration |
| Hydraulic tank volume | 420 L |
| Cutting roll size | 2200 mm × 670 mm |
| Cutter | 10 sets |
| Cutter size | 465 mm × 220 mm × 20 mm |
| Cutter screws | 5 pcs/knife |
| Number of bed knives | 2 set |
| Bed knife size | 1100 mm × 110 mm × 30 mm |
| Bottom cutter screws | 12 pcs |
Sizes and models
| Model | Mobility | Drive | Capacity | Power | Weight |
|---|---|---|---|---|---|
| WD3600C | Crawler | Diesel | 25–40 t/h | 408 kW | 21 t |
| WD3600M | Skid-mount | Diesel | 25–40 t/h | 408 kW | 15 t |
| WD3600S | Semi-trailer towable | Diesel | 25–40 t/h | 408 kW | 17 t |
| WD3600W | Road-wheeled | Diesel | 25–40 t/h | 408 kW | 18 t |
| WDE3600C | Crawler | Electric | 25–40 t/h | 355–400 kW (Configurable) | 21 t |
| WDE3600M | Skid-mount | Electric | 25–40 t/h | 355–400 kW (Configurable) | 15 t |
| WDE3600S | Semi-trailer towable | Electric | 25–40 t/h | 355–400 kW (Configurable) | 17 t |
| WDE3600W | Road-wheeled | Electric | 25–40 t/h | 355–400 kW (Configurable) | 18 t |
The WDE3600W combines the WeiDong 3600 Series grinding platform with a road-wheeled configuration. A reference main grinding motor range of 355–400 kW is used for project selection. The final motor brand, rated power, voltage, frequency, starter or VFD arrangement, and auxiliary motor ratings are confirmed against the feedstock, target output and site electrical infrastructure. Rated capacity is a typical 25–40 t/h and varies with material, moisture, contamination, rotor, screen and feeding conditions.
Why choose the WDE3600W
Choose WDE3600W when the site has suitable industrial power and wheeled movement is still required. Electrical distribution and cable management must be designed around the intended movement area.
Recommended applications
- Powered industrial yards with prepared surfaces
- Customers reducing diesel use in regular production
- Projects that need wheeled repositioning within a planned electrical area
Recommended feed materials
- Tree roots and stumps
- Branches and forestry residue
- Land-clearing wood waste
- Palm residues and selected bulky biomass
Materials to confirm before ordering
- Soil-contaminated root balls
- Pallets or construction wood containing metal
- Mixed waste with stone or non-wood contaminants
When another configuration fits better
- The site has no reliable industrial power supply
- Soft ground requires crawler mobility
- The grinder will remain permanently fixed in a production line
Options confirmed for each project
- Knife or hammer rotor selected for the material
- Screen opening selected for target output
- Discharge conveyor and magnetic separation options
- Remote control and project-specific safety equipment
- Engine, motor and electrical brands subject to configuration
What changes actual capacity
- Feed material type, density and hardness
- Maximum piece size and feeding consistency
- Moisture content
- Soil, metal, stone and other contamination
- Rotor, cutter or hammer configuration
- Screen opening and required output size
- Operator practice and downstream material handling
Information needed for a quotation
- Material description, photos or a working video
- Maximum feed dimensions and typical piece size
- Moisture level and known contamination
- Required hourly throughput
- Target output size and downstream use
- Ground conditions and required mobility
- Available electrical supply for electric configurations
- Destination country and transport requirements
Performance note: Capacity and final particle size vary with feedstock type, moisture, contamination, rotor, screen and feeding conditions. Confirm the final configuration through material testing and the project specification.
Features and benefits
Electric Drive
Best suited to facilities with a stable industrial power supply and planned electrical infrastructure.
Road Wheeled
Frequent site transfer on a wheeled mobile chassis. Public-road registration and operation depend on local regulations.

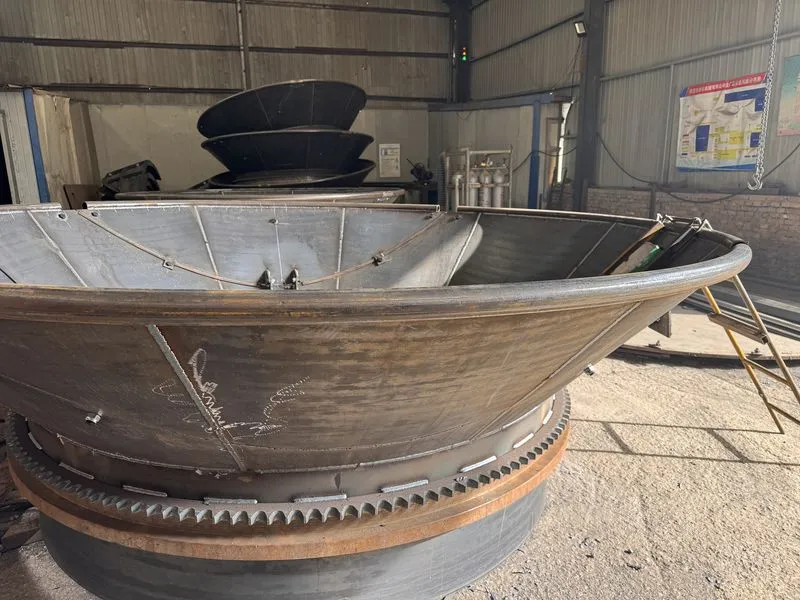

Ø 3600 mm tub platform
The platform has a Ø 3600 mm inlet and a typical capacity of 25–40 t/h. Actual performance depends on material and setup.
Videos
WD3600 tub grinder from above
WDE3600 electric tub grinder in industrial wood recycling
WDE3600 electric tub grinder on a customer site
Applications
Land Clearing: Roots, Stumps and Debris
Processing stumps, root balls, brush and mixed land-clearing debris on site to cut hauling volume and open the site faster.
Forestry and Logging Residue
Grinding logging slash, whole trees and forestry residue at the landing or roadside into transportable biomass.
Green Waste, Mulch and Municipal Wood
Processing municipal tree work, park and garden waste and brush into mulch, compost feedstock or fuel.
Palm Oil Plantation Residue (EFB, Trunks, Fronds)
Processing empty fruit bunches, oil-palm trunks and fronds on Southeast Asian plantations for compost, fuel or field reuse.
Frequently asked questions
Is the WDE3600W motor specification fixed?
No. The main motor, auxiliary motors, voltage, frequency, starter or VFD and electrical protection are confirmed for the material and destination power system.
How does an electric wheeled grinder receive power while moving?
Movement must remain within the planned cable and electrical distribution area. Cable routing and safe isolation are part of the project design.
Is the rated capacity guaranteed for every material?
The rated capacity of WDE3600W is 25–40 t/h, but it is a typical or configured value rather than a guarantee for every feed material. Actual throughput depends on feedstock, moisture, contamination, rotor, screen and feeding conditions.
What information is required before configuring this machine?
Provide material photos or video, maximum feed size, moisture and contamination, required throughput, target output, site conditions, mobility needs and the destination electrical supply where applicable.
Related reading
Comparison
Industrial Tub Grinder Price in China
Related products
Tub Grinders

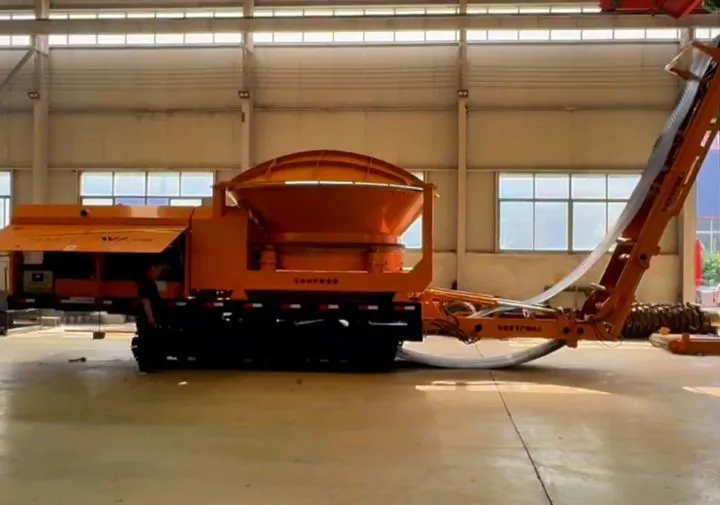

Crawler Tub Grinder WD3600C
