Biomass Fuel Yard Layout for a Tub Grinder: Loader Paths, Stockpiles, and Output

A field layout method for biomass fuel receiving, quarantine, loader routes, stockpiles, sampling and dispatch.

Planning biomass fuel output stockpiles around a tub grinder is a dispatch problem as well as a space problem. The yard must keep unaccepted material, accepted product and material awaiting another pass distinguishable while vehicles collect the correct loads. A large empty area does not solve that problem without lot identities, collection rules and a response to delayed trucks. This guide focuses on the output side of the orchard grinding workflow.

Define the biomass fuel lot before equipment decisions

Biomass fuel is an outlet description, not a uniform feed. Identify whether each lot contains forestry residues, clean waste wood, bark and slabs, or another approved woody source. Record three-dimensional geometry, moisture sampling method, storage age, visible soil or stone, metal-control method and mixing rule. Keep unknown or prohibited material in quarantine.

Write the receiver’s particle-size, fines, contamination and moisture acceptance rules before the shift. Track accepted fuel, oversize, recirculation, recovered contamination and unresolved loss. Heating, smoke or suspected self-heating requires the site’s emergency and fire-response procedure; this article does not replace it.

Site-specific decision gate

Give the yard drawing a revision, owner and field-verified dimensions, including quarantine, stockpile and route limits.

Map output states before drawing pile locations

Start with the decisions the material must pass through. A newly discharged lot may await sampling or customer acceptance. Another lot may be accepted for a particular destination. Oversize or rejected material may need a separate authorized route. These states should be visible in the yard plan and the dispatch record instead of existing only in someone’s memory.

Assign a lot identifier that connects the output to its incoming orchard material and processing record. Where one input lot produces several output fractions, retain that relationship. If the receiving customer uses its own delivery reference, keep both identifiers. A driver should not have to infer the correct pile from color, appearance or which pile happens to be closest to the entrance.

Reserve space for material waiting on a decision

Do not assume that all output can immediately leave the site. Agree when sampling occurs, who accepts the result and how long a decision may reasonably take. Allocate a controlled location for material awaiting that decision. The site-specific layout review should establish suitable access, separation and storage constraints; this guide does not prescribe universal pile heights or distances.

Keep held material from merging into accepted stock as either pile grows. Mark locations and update the map when material moves. If the site cannot preserve the necessary separation, pause or reorganize the approved workflow rather than mixing lots and attempting to reconstruct their identities later. Lost identification can turn an otherwise useful sample result into an unreliable release record.

Connect storage availability to collection timing

Write a collection schedule that identifies the destination, lot, expected vehicle and available loading window. Confirm which times are commitments and which are estimates. A missed collection may affect the next production lot even when the grinder itself is operating normally. The person coordinating dispatch should know when a delay will require a change to the approved operating sequence.

Use measured or clearly described estimated output quantities when reviewing storage availability. Do not apply an input branch-volume estimate directly to finished material. Keep the measurement basis visible, and avoid assuming an exact density without representative evidence. The orchard feed-rate measurement guide explains why input quantities need their own boundary; dispatch needs a separate output record.

Make the loading instruction identify the actual pile

A dispatch instruction should state the lot identifier, physical location, destination and release status. Record the accepted quantity and the measurement method used for the shipment. If a load draws from more than one approved lot, retain the contributing lot identities and confirm that the mixture is permitted by the destination’s requirements. Do not treat mixing as an administrative shortcut.

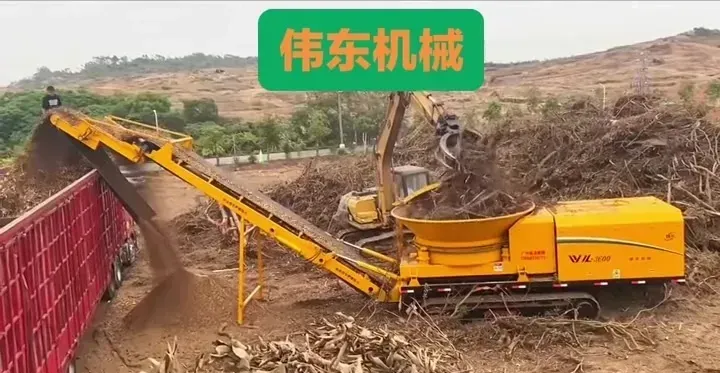

Confirm that the collection vehicle and loading method are suitable through the site’s procedures and the relevant transport requirements. Actual vehicle limits, load security and safe positioning must be established by the responsible parties. A photograph of a truck under a conveyor does not establish an acceptable load profile or safe pedestrian route for another site.

Dispatch field	What to enter	Mismatch that stops release
Lot identity	Output lot and linked input record	Label missing or inconsistent with the selected pile
Acceptance	Decision, destination and responsible person	Sample decision pending or destination not approved
Location	Current marked stock position	Pile moved or mixed without updating the record
Shipment	Vehicle, measured quantity and collection reference	Quantity basis unclear or loading arrangement unsuitable
Remainder	Material left and its continuing status	Partial collection incorrectly marked as a complete lot removal

Plan the late-truck scenario explicitly

Identify the safe operating response before a vehicle fails to arrive. Options depend on the approved site arrangement and may include delaying the next lot, using an already approved alternate storage position or rescheduling production. Do not improvise a new pile in an access lane, service area or required exclusion zone merely to maintain an hourly target.

Record the delay separately from active processing performance. If the loader must interrupt feeding to clear output, retain the interruption in the elapsed production record. The orchard site-requirements review establishes the underlying movement envelopes. Dispatch changes must remain inside that approved arrangement or trigger another review.

Keep reprocessing from creating false production

Material awaiting another pass should retain its original identity with a clear reprocessing status. Record the additional operation and the final disposition. Do not count returned material as fresh incoming orchard feed. Similarly, do not count material as accepted product until the relevant acceptance decision has been completed. This prevents stock records and production reports from drifting apart.

The orchard output acceptance and throughput guide provides a measurement framework for that distinction. Use it alongside the dispatch sheet so the measured accepted quantity and the released shipment describe the same material, even when processing and collection happen on different days.

Close the day with a stock reconciliation

Record opening material, new output, shipments, reprocessing transfers and closing material on a consistent measurement basis. Investigate discrepancies rather than forcing an exact balance from incompatible estimates. Keep unresolved lots marked for the next shift. Review this output workflow alongside the proposed tub grinder arrangement and the horizontal wood grinder overview when comparing equipment layouts. Send the stock map and dispatch assumptions through the project contact page for a configuration discussion grounded in the complete workflow.

Evidence package and next step

Retain the material-lot sheet, photographs, configuration, pre-start record, gross and productive time, delay codes, loader observations, accepted-output samples, rejects and corrective actions. Mark measured observations, supplier statements and planning assumptions separately.

Use the biomass fuel feed-rate worksheet, the tub grinder product family, the project contact page to assemble the project file. For an adjacent WeiDong equipment view, see horizontal wood grinder. A recommendation should follow representative material and a documented trial rather than an unverified headline rate.

Final release checklist

• The feed source, geometry, moisture basis and exclusions are identified.
• The receiver and accepted-fuel specification are written.
• People, loaders, trucks and service work have controlled routes and responsibilities.
• Gross time, accepted output, oversize, recirculation and rejects use one measurement boundary.
• Abnormal events trigger the approved stop, isolation and review process.
• Changes receive a new revision and verification run.

Frequently asked questions

What should a biomass fuel yard layout control?

Source identity, quarantine, loader paths, grinding, accepted output, sampling, service and emergency access.
