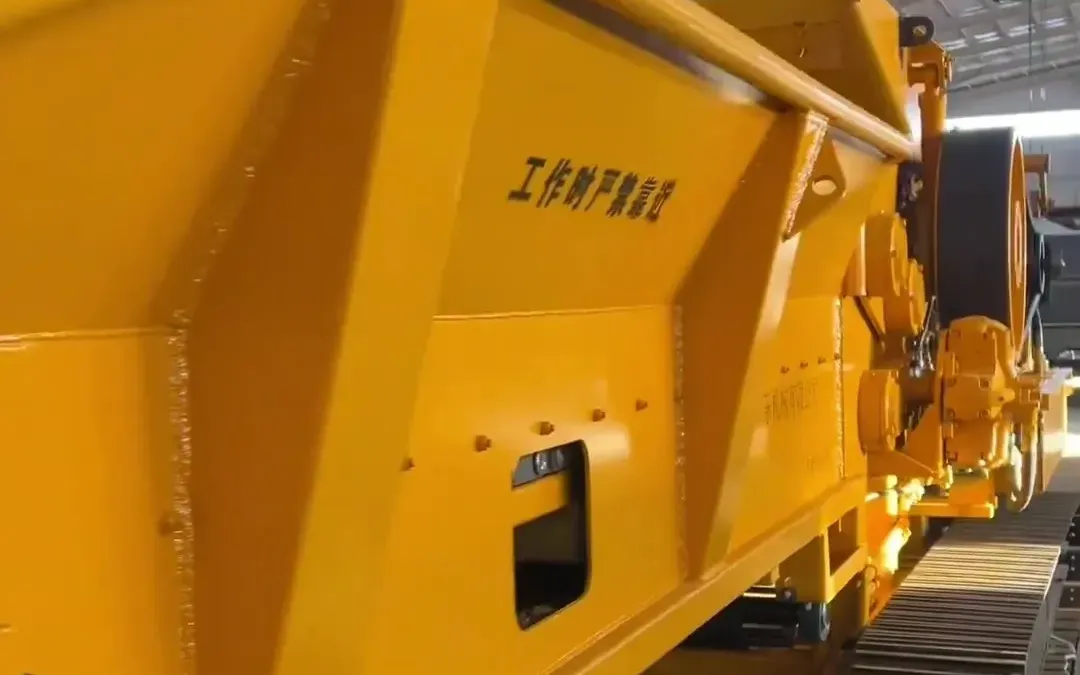

Horizontal Grinder Site Requirements for Whole-Tree Processing

A field planning checklist for whole-tree grinder space, access, ground, loading, discharge, service and receiver handoffs before equipment arrives.

Horizontal grinder site requirements for whole trees start with a drawing of how trees, machines, people and finished biomass will move. A grinder may fit within the available area but still be impossible to run safely if the loader has no turning room, the discharge blocks truck access or service panels cannot be reached. The site team should measure these relationships before a machine arrives and confirm the delivered configuration’s limits with the supplier.

Use this field checklist for a temporary clearing site or a central woody biomass yard. It does not prescribe universal clearances, slope limits or ground bearing. Those values depend on the exact machine, support equipment, local requirements and a competent site assessment. The checklist makes the questions visible so the project does not discover them during commissioning.

Start with the permitted material and outlet

Classify the incoming whole-tree stream: straight stems, forked crowns, branches, leafy tops and roots. Record the approximate shares, dimensions, contamination and preparation needed. Mark where each class will be received and inspected. A root ball carrying soil should not disappear into the clean stem pile merely because both came from one clearing contract.

Define the receiver’s accepted biomass product, oversize path, sampling and rejection rules. Estimate the space needed for separate accepted, suspect and oversize output. The six-measurement worksheet helps turn vague project descriptions into an equipment enquiry. Use measured quantities where possible and label pile estimates as uncertain.

Walk the arrival and unloading route

Measure gate width, turning radius, overhead obstructions, surface condition, bridge or culvert constraints and any public-road interface. Include the transport vehicle and unloading equipment, not just the grinder’s working footprint. Confirm where a loaded truck may wait without blocking emergency access. If the machine is moved repeatedly, inspect each stop rather than assuming one approved layout covers the route.

Document ground bearing and drainage with the responsible site specialist. Heavy equipment may need a prepared pad even when the surrounding yard appears firm. Plan for rain and for repeated loader travel near stockpiles. The exact pad design is a site decision; a brochure photograph is not evidence that a machine can work on a particular patch of ground.

Give the loader a predictable feed cycle

Mark incoming inspection, released feed staging, tree orientation, loader travel and grinder infeed on the sketch. The loader should be able to select and present material without crossing the output route or reversing into a pedestrian area. Whole trees may need turning or trimming before a controlled horizontal infeed can accept them. Set aside a separate position for that work and for rejected pieces.

Measure several representative loader cycles, including a forked crown and the normal stem mix. Record travel, grip changes, orientation and waiting. Do not size the loader from bucket volume alone. The loader and grinder output guide explains why cycle time and feed presentation can control the line. Retain the cycle observations when comparing machine configurations.

Protect discharge and product handling

Choose the discharge direction before finalizing the grinder position. Show conveyor or chute reach, expected pile growth, truck or loader access and the point where output will be sampled. The output vehicle should not enter the machine’s feed path. Allow room to hold oversize or suspect material without mixing it with accepted biomass.

Ask the receiver how it wants material sampled and recorded by source lot. A machine can reduce trees efficiently while the receiving route rejects the product or runs out of storage. The output sampling guide provides a practical observation method; use the receiver’s own acceptance rule to release each lot.

Reserve space for people and service

Draw the manufacturer’s exclusion area, safe operator position, pedestrian route, emergency access, fire response equipment and isolation points. Identify where qualified staff can inspect, clean or replace wear parts after shutdown. Do not park a machine so close to a wall or stockpile that a required service step becomes impossible. Protect cables, hoses, fuel or power connections from loader traffic.

Use the site procedure and exact model manual for guarding, shutdown and restart. Keep unknown material in a labeled hold area and define who may release it. A horizontal wood grinder can be reviewed as a category starting point, but the work-cell drawing must use the actual quoted dimensions and service envelope.

Check supporting equipment and utilities

List loaders, grapples, transport trucks, lifting equipment, screening or separation stages, fire provisions and communications. For electric configurations, have a qualified person verify supply capacity, connection, cable route and protection. For diesel configurations, plan fueling and spill controls without placing a service vehicle in the feed or discharge lane. Confirm lighting and visibility for the proposed work hours.

Consider how the site will respond to a stopped machine or blocked discharge. Where will material be held? Who will isolate the machine? Which vehicle can reach the service side? A good layout allows a controlled pause without forcing people into a traffic conflict. The woody feed yard layout illustrates material segregation, though whole-tree geometry needs its own drawing.

Run a tabletop and field walk before mobilization

Have the operator, loader driver, site supervisor, maintenance lead and receiver review the same sketch. Trace a tree from arrival to inspection, staging, feed, discharge, sampling and dispatch. Then walk the route with dimensions and actual vehicle turning needs. Record unresolved items and the person responsible for each. Repeat the walk after meaningful changes to the pad, machine or material mix.

Use the equipment overview to identify the configuration to measure, then send the annotated site drawing, feed record and receiver specification through the project contact page. A site is ready when the complete material and support flow can be described and checked, not merely when a grinder can be parked there.

Frequently asked questions

What should a whole-tree grinder site drawing show?

Show receiving, inspection, released feed, loader route, machine envelope, discharge, oversize hold, service and emergency access.

Can a grinder be placed wherever its footprint fits?

No. Transport, ground, loading, discharge, exclusion and maintenance access must also be checked for the exact configuration.
