How Screen Size Changes Wood Grinder Output

A smaller screen generally retains material longer and shifts output finer, but it can reduce throughput, increase recirculation and raise wear or energy demand—especially with wet, fibrous feed.

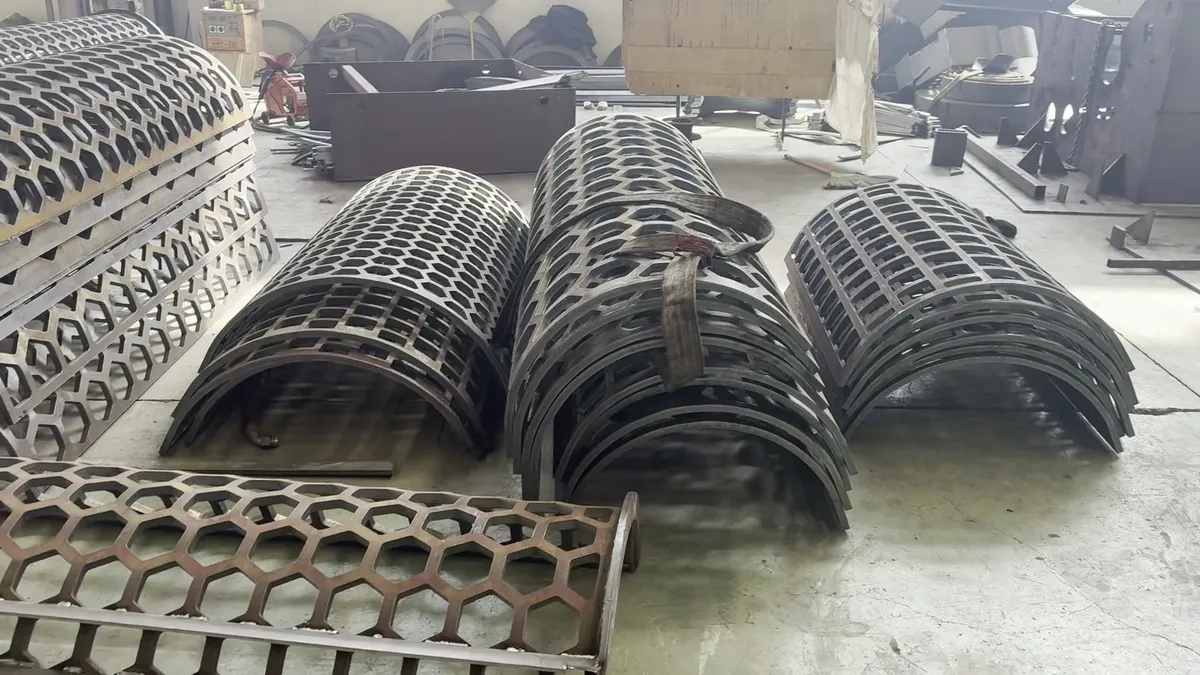

The screen is an output-control component, not a precision sieve. Smaller openings usually move the particle-size distribution downward, but actual finished material contains a range of shapes and lengths. Screen choice must balance product acceptance, capacity, energy and wear.

What happens inside the chamber

Material that is small enough and correctly oriented can pass through the screen. Material that cannot pass stays in the grinding zone for more cutting or impact events. Reducing the opening therefore tends to increase residence time and internal circulation.

Why smaller is not always better

A finer screen can become the restriction in the system. Wet fibres may bridge openings, long splinters can align unpredictably, and high feed rates can overload the circulating material bed. Possible results include lower throughput, higher specific energy, more heat and faster screen or tool wear.

US Forest Service research on wood shreds reports that screen size and throughput speed affect particle-size distribution. This supports the engineering principle, but it is not a performance guarantee for a specific WeiDong model. See the study record.

Variables that change the result

• Material: species, bark, roots, straw and palm residues fracture differently.
• Moisture: wet fibrous feed may bend, smear or bridge instead of breaking cleanly.
• Rotor and tools: knife geometry, hammer mass, speed and wear condition change reduction action.
• Feed rate: overfeeding can reduce effective separation and increase recirculation.
• Screen condition: bent, worn or blocked openings change the effective area.

A practical selection process

1. Define the downstream acceptance range and how it will be measured.
2. Provide representative feedstock, including typical moisture and contamination.
3. Select a starting rotor and screen combination.
4. Run a controlled material test where the output requirement is critical.
5. Measure both particle distribution and production rate; do not judge from one handful.
6. Record the configuration so future parts and operating settings match.

Inspection and replacement

Inspect screen fasteners, cracks, deformation, plugged area and wear around the openings. Isolate all hazardous energy before entering the chamber or removing guards. Never work under unsupported components or rely only on an emergency stop.
