Palm Replanting Waste Workflow: Process Trunks, Fronds and Root Bases Without Mixing the Stream
A field workflow for separating oil-palm trunks, fronds and soil-bearing root bases before grinding or chipping, with measurable trial and outlet checks.
Short answer: a palm replanting project should not send every residue into one pile. Oil-palm trunks, fronds and crowns, and soil-bearing root bases behave differently during handling and size reduction. Separate them at the felling zone, choose a processing route for each stream, and measure accepted output rather than relying on an unqualified tonnes-per-hour claim. This workflow helps plantation and land-clearing managers organize that evidence before selecting a palm tree grinder or chipper.
The Malaysian Palm Oil Board identifies oil-palm trunks, fronds and empty fruit bunches as distinct biomass resources. Its oil-palm biomass database article also shows why source and material class matter. For replanting, the field streams are mainly felled trunks, attached or loose fronds, crown material and root bases. EFB comes from the mill and should normally be managed as a separate lot.
Start with the outlet, not the machine
Before mobilizing equipment, ask where each processed stream will go. A mulch or soil-return program may accept a broad reduced material. A boiler, fibre process, compost operation or chip buyer may specify particle range, oversize, fines, ash, moisture reporting and contamination limits. Record those requirements in writing. The words “biomass” or “palm chips” are not an acceptance specification.
If the outlet requires a clean knife-cut chip, prepare a representative trunk sample for a chipper trial. If it accepts screened hog fuel, mulch feedstock or an intermediate material made from irregular pieces, evaluate a grinder. Root bases carrying soil and stone require a separate cleaning, rejection and wear-risk plan. No machine choice removes the need to control contamination.
Map three replanting streams
| Field stream | Main handling question | First processing decision |
|---|---|---|
| Trunks | Can pieces be aligned, presented and discharged safely? | Trial clean prepared trunks in a chipper when chip geometry matters; trial a grinder when irregularity or a screened reduced product is acceptable. |
| Fronds and crowns | Will long, flexible material bridge, wrap or occupy excessive transport volume? | Define bunch size, orientation and any pre-cutting before a controlled grinder or chipper trial. |
| Root bases | How much soil, stone and trapped foreign material remains? | Clean and inspect in a separate zone; reject unsafe pieces and test separately from clean trunks. |
This separation is the central operational decision. A mixed pile hides the proportion of difficult material, prevents fair trials and can transfer soil into an otherwise clean biomass product.
A six-stage palm replanting workflow
- Survey and mark: identify access roads, soft ground, overhead or underground hazards, drainage, protected zones, felling direction and temporary stockpile areas.
- Fell and classify: assign trunks, fronds/crowns and roots to visibly separate lanes. Photograph representative pieces and record minimum, typical and maximum dimensions.
- Remove contamination: keep soil scraping and root cleaning away from the clean-trunk lane. Provide a quarantine area for wire, stones, metal or unknown material.
- Prepare and stage: cut or orient pieces only according to the approved handling plan. Do not create piles the loader cannot see through or safely reach.
- Process and sample: run each material class as a separate measured batch. Record preparation time, active processing time, interruptions, rejects and output samples.
- Store and dispatch: identify finished piles by source, date, material class and test condition. Protect the outlet specification from later mixing.
Design the site around one-way material flow
A practical layout separates incoming biomass, inspection/quarantine, preparation, machine feed, finished output and truck collection. Loader travel should not cross pedestrian routes. The discharge pile must not grow back toward the machine or block inspection access. If the project moves through plantation blocks, decide whether the processor follows the felling crew or operates from controlled collection pads.
The Palm EFB yard-layout checklist provides a useful separation logic, but a replanting site adds felling, long trunks and soil-bearing roots. Use the principle, not the EFB layout unchanged.
Choose grinder or chipper by a trial, not a label
A drum chipper uses knives and is generally evaluated when clean, directionally feedable material must become a defined chip. A grinder reduces material through a rotor and screen arrangement and is generally evaluated when feed shape is less regular or a broader reduced product is acceptable. Actual suitability depends on the machine configuration, feed dimensions, moisture, contamination, operator method and outlet.

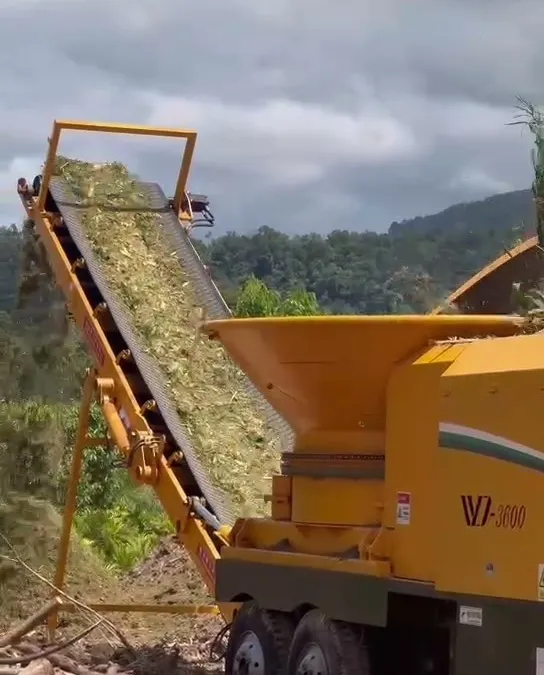

For irregular palm residue, review the tub grinder range. For prepared trunk or branch material where chip form matters, review the wood chipper range. These pages are starting points; request the current approved feed limits and run a representative test.
Run a representative acceptance trial
Build separate batches for normal trunks, difficult forked or crown material, fronds and cleaned roots. Do not use only the easiest pieces. Weigh the batches when practical, or use one documented volumetric method consistently. Record all preparation and stoppages. Take output samples at the beginning, middle and end of each batch, then evaluate them using the intended buyer’s method.
Compare accepted output per gross operating hour, not only material passing the rotor during a short uninterrupted interval. Report oversize, fines, rejects and any reprocessing. If pre-cutting, cleaning or screening is required, include that labor, equipment and time in the process cost.
Control safety and stored energy
Felling, loaders and size-reduction equipment create separate hazard zones. Follow the site risk assessment, machine manual and local requirements for guarding, exclusion distances, traffic control, fire response and communication. A blockage or inspection inside a danger zone is a maintenance event. Stop, isolate and verify all electrical, mechanical, hydraulic, gravity and other stored energy before authorized work. OSHA’s hazardous-energy control standard explains the underlying lockout/tagout principle; applicable local rules must also be followed.
Evidence pack for a supplier review
- Project location, terrain, weather window and planned daily work sequence.
- Photos and dimensions for trunks, fronds/crowns and cleaned/uncleaned roots.
- Estimated proportion of each stream and the method used to estimate it.
- Loader type, attachment, available working radius and relocation method.
- Outlet specification, sampling method and acceptable oversize/fines/contamination.
- Required screen, separator, storage or transport steps after size reduction.
- Trial record including preparation, gross time, delays, rejects and accepted output.
For a configuration review, send this evidence through the TubGrinderCN project contact page. If a buyer also wants a separate comparison focused on output geometry, the WeiDong network’s whole-tree chipper or grinder guide provides an additional decision framework.
