Wood Grinder Site Layout: Reduce Loader Travel

Plan a mobile wood grinder site around five working zones, measured loader cycles, discharge control, and a short layout trial.

A mobile wood grinder site is easier to operate when the loader, grinder, incoming material, finished product, and trucks move through separate, predictable paths. The practical goal is not to make the drawing look tidy. It is to reduce loader travel, avoid reversing conflicts, keep the grinder fed safely, and leave enough room to remove finished material without stopping production. This guide gives operators a measurement method they can apply before moving equipment.

Start with the material flow, not the machine location

Many temporary grinding sites are arranged around the first open patch of ground large enough for the grinder. That can create a long shuttle between the raw pile and the infeed, or force the same loader to cross the discharge path on every cycle. A better sequence is to draw the material flow first: receiving, inspection, staging, grinding, finished-product storage, and outbound loading. Place the grinder only after those zones have been defined.

If you are still deciding whether mobility is useful for your operation, review the mobile wood grinder guide. Mobility creates value when it shortens repeated material handling. It does not compensate for a congested yard or an unsuitable travel surface.

Map five working zones

Use a simple site sketch and mark five zones before equipment arrives:

Receiving and inspection: a place to unload and identify metal, oversized pieces, soil, stones, wire, or other contamination before material enters the active feed pile.
Feed staging: a working pile close enough for short loader cycles, with space to turn and approach the grinder consistently.
Grinding zone: the machine footprint plus the safety clearances required by the manufacturer, the discharge direction, access for inspection, and an emergency exit route.
Finished-product zone: enough room for the expected output pile and for a loader to remove material without entering the grinder feed path.
Service and exclusion zone: a controlled area for shutdown inspection, maintenance access, fire-control equipment, and people who are not operating mobile equipment.

The exact dimensions depend on the machine, attachments, local rules, material behavior, and the manufacturer’s manual. Treat the sketch as an operating plan, not as a substitute for the required safety distances.

Measure the loader cycle before changing the layout

Loader travel is often the easiest loss to see and the hardest loss to estimate accurately. Time at least ten representative feed cycles. Start the timer when the loader leaves the grinder area and stop it after the next load has been placed and the loader is ready to depart again. Record travel empty, bucket filling, travel loaded, positioning, and unloading as separate parts when possible.

Use the median cycle rather than the fastest cycle. The median reduces the influence of one unusually easy or difficult bucket. Also record why slow cycles occurred: traffic conflict, poor visibility, a tight turn, soft ground, pile face collapse, contamination inspection, or waiting for the grinder. The reason matters because moving the pile will not fix a delay caused by inconsistent feed preparation.

Cycle element	What to record	What the result may reveal
Empty travel	Seconds and distance	Unnecessary separation between feed pile and grinder
Bucket filling	Seconds and number of attempts	Poor pile shape or difficult material presentation
Loaded travel	Seconds, turns, and surface condition	Tight corners, grades, soft areas, or mixed traffic
Positioning	Seconds near the infeed	Limited visibility or an awkward approach angle
Waiting	Seconds and reason	Feed mismatch, downstream blockage, or work-zone conflict

Convert cycle time into a feeding check

A simple planning calculation is useful even when exact production data is unavailable. Estimate the loader’s delivered volume per hour as:

Delivered volume per hour = representative bucket volume multiplied by 3,600, divided by median cycle seconds, multiplied by a practical fill factor.

Use measured bucket volume and a conservative fill factor for the actual material. Branches, roots, slash, green waste, and dense wood do not fill a bucket in the same way. This calculation is a planning estimate, not a guarantee of grinder throughput. It tells you whether the handling system is likely to be the limiting step. For a broader field test of actual production, see the wood grinder throughput site-test method.

If the estimated loader delivery rate is below the grinder’s observed consumption rate, the layout or loader plan needs attention. If delivery capacity is comfortably higher but the grinder still waits, inspect pile preparation, operator timing, contaminants, infeed restrictions, and downstream removal before assuming that a larger loader is required.

Use one-way movement wherever the site allows it

A one-way loop can reduce reversing, blind-side turns, and meetings between inbound trucks and the feed loader. The loop does not need to be large. It needs a clear entry, a predictable approach to the raw-material area, a separate path past the active grinding zone, and an exit that does not cross the finished-product loading position.

Where a loop is impossible, establish fixed right-of-way rules and marked waiting points. A driver should know where to stop before entering the loader’s work area. Avoid placing a truck queue where it blocks the grinder operator’s view or the emergency access route. Site rules should be communicated during the shift briefing and updated when stockpiles change the available space.

Choose the grinder orientation around discharge control

The discharge direction determines more of the site than the machine footprint alone. Finished material must have room to accumulate temporarily and be removed. Wind direction, dust-sensitive neighbors, overhead restrictions, drainage, and the intended truck-loading route all influence orientation. The discharge pile should not grow into the loader’s feed approach or force people to walk through an equipment lane.

Machine configuration also affects placement. Compare the movement and setup implications in the wheeled, crawler, semi-trailer, and skid-mount grinder guide. A crawler unit may reposition inside a difficult site differently from a road trailer, while a stationary or skid-mounted system may justify more permanent conveyors and barriers.

Plan for changing stockpiles

A layout that works on the first morning may fail after two days of receiving material. Raw piles spread, finished product occupies turning space, and operators create informal shortcuts. Mark maximum pile boundaries on the site plan and on the ground where practical. Decide in advance when finished product will be removed and who can authorize a change to the traffic pattern.

Keep inspection access open around the machine. Do not allow the convenience of a shorter loader cycle to eliminate service access, sight lines, or required clearances. If the feed pile must move closer, change one variable at a time and repeat the ten-cycle measurement. That makes the benefit visible and prevents an apparent improvement from hiding a new conflict.

Match the layout to the feedstock

Loose brush and long branches need room for the loader to collect and align material. Dense logs may require a different bucket or grapple approach. Root balls and land-clearing debris need a deliberate inspection and cleaning area because soil and embedded objects can affect wear and safety. The tree-root and land-clearing waste guide explains why feed preparation should be considered before machine selection and site arrangement.

For mixed green waste, separate obviously unsuitable material at receiving instead of asking the feed operator to make every decision beside the grinder. A clean staging process creates more consistent bucket loads and reduces interruptions near the machine. The layout should support this decision flow rather than reward operators for skipping it.

Run a 30-minute layout trial

Before committing to a full shift, run a controlled trial with representative material. Confirm that all operators understand the test and that normal safety procedures remain in force. Record:

ten or more loader feed cycles;
grinder waiting time and the reason for each wait;
loader waiting time near the infeed;
number of reversals and tight turns per cycle;
traffic conflicts or stopped trucks;
time spent moving finished product;
surface problems, visibility limits, and housekeeping issues.

Then change only the highest-impact constraint. That may be rotating the grinder, moving the feed pile, separating outbound loading, adding a second staging pile, or changing the loader approach. Repeat the same observation period so the comparison uses the same definitions.

Do not optimize travel at the expense of safety

The shortest route is not automatically the safest or most productive route. A slightly longer path with clear sight lines and fewer reversals can be more reliable than a tight path beside people, trucks, or the discharge pile. Follow the equipment manual, site risk assessment, local regulations, and the directions of the responsible safety personnel. Stop the trial when changing ground conditions, poor visibility, fire risk, contamination, or an unstable pile makes the planned movement unsafe.

Capacity planning should also remain realistic. The capacity-estimation guide explains the variables that make nameplate-style comparisons incomplete. A well-arranged site protects productive time, but actual output still depends on feedstock, output size, machine configuration, operating condition, and downstream handling.

A practical layout decision checklist

Draw receiving, feed staging, grinding, finished product, and service zones.
Confirm manufacturer clearances and local site requirements.
Separate truck traffic from the loader’s repeated feed path.
Measure at least ten current loader cycles and record delay reasons.
Estimate whether loader delivery can support the observed grinder demand.
Orient discharge so finished material can be removed independently.
Reserve space for pile growth and bad-weather surface changes.
Run a short controlled trial, change one constraint, and measure again.

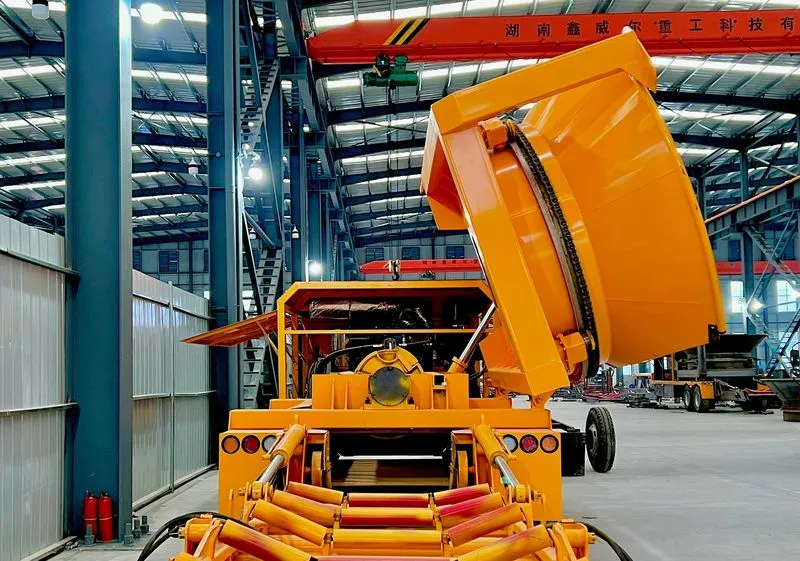

If you are planning a mobile installation, send WeiDong a site sketch, feedstock photos, desired output, loader information, and transport constraints. The engineering team can use those inputs to discuss a suitable configuration and practical placement options. Start with the WD3600W mobile tub grinder page or review the wood-grinding application library for related material-handling examples.
