Tub Grinder Site Requirements for Sawmill Waste: Space, Access, and Support Equipment

A field layout checklist for sawmill residual receiving, separation, loader paths, grinding, output storage and service access.

Tub grinder site requirements for sawmill residuals should be defined as a material-flow problem, not simply as a machine footprint. A workable site needs safe truck access, an inspected incoming-material zone, enough room for loading and discharge, controlled separation between raw and processed material, and a documented path for samples and rejected loads. The exact clearances and ground requirements must come from the selected machine configuration and the site’s authorized safety plan.

Draw the sawmill residual cell at field scale

Mark the source points for slabs, bark, trim blocks and fines, then draw the travel path to separate receiving zones. Add the loader approach, grinder working envelope, discharge pile, sample point, reject quarantine, service area and emergency access. Use field-verified dimensions and turning paths; a schematic without scale cannot show whether routine loading blocks another sawmill movement.

Zone	Field check	Release condition
Receiving and separation	Source labels, drainage and barriers between approved and held material	Only identified coarse residuals enter the loading queue.
Loader route	Turning radius, visibility, grade and conflict with trucks or people	The route remains controlled during both feeding and pile removal.
Grinding and discharge	Machine clearances, output direction and room for oversize handling	The installed layout matches the approved configuration and site procedure.
Service and emergency access	Isolation area, authorized service space and unobstructed response route	Routine production cannot consume the required access.

Record the drawing revision and the person who verified it in the field. If a stockpile, loader, truck route or machine position changes, issue a new revision and repeat the affected checks before treating the layout as ready.

Map the complete movement before choosing the working area

Draw the route taken by every vehicle and material stream: inbound sawmill residuals, inspection, preprocessing, loader travel, grinder feeding, discharge, sampling, temporary storage, rework, and outbound transport. This simple map exposes conflicts that a machine-only layout misses. An inbound truck should not have to reverse through the loader’s active zone, and accepted output should not be crossed by uninspected feedstock.

Use the site’s actual vehicle dimensions and turning needs rather than a generic drawing. Record gates, bridges, overhead obstructions, slopes, soft ground, drainage paths, and seasonal access limitations. The application overview can help organize the material and operating context, while the final route must be checked against the chosen equipment and local rules.

Separate five functional zones

Zone	Purpose	Evidence to record
Receiving	Unload and identify incoming lots	Source, time, material description, visible contamination
Inspection and preparation	Remove prohibited items and isolate uncertain material	Inspection result, disposition, responsible person
Grinding	Provide controlled feeding, machine access, and discharge	Approved operating boundary and configuration documents
Processed stockpile	Keep output traceable and available for sampling	Lot identity, sample record, receiver decision
Exception area	Hold rejected, oversize, or contaminated material	Reason for hold and next action

Painted lines alone do not create separation. Use barriers, signs, traffic rules, and assigned responsibilities that operators can follow during busy periods. If one physical area must serve more than one purpose, document when it changes use and how it is cleared before the next lot arrives.

Confirm ground, drainage, and service access

The operating pad must support the final machine, loader, support vehicles, and stockpiles under the site’s actual weather conditions. Do not infer ground-bearing requirements from a photograph or another project. Obtain the selected configuration’s dimensions and loads, then have the responsible site professional confirm the pad and access route. Water movement also matters: runoff through a sawmill residual pile can change material condition and carry fines into working areas.

Provide service access without forcing maintenance personnel into active loader traffic. Identify the isolation point, inspection position, tool staging area, and route for replacing approved wear components. The parts and service section is a useful starting point for support planning, but the machine manual and authorized procedures control the work.

Plan the loader and discharge as one system

A grinder cannot maintain a stable workflow if the loader repeatedly waits for trucks, crosses the discharge path, or handles both uninspected feed and accepted output with no cleaning rule. Observe a complete cycle and record loader travel distance, waiting time, bucket presentation, discharge clearing, and stockpile management. These measurements are more useful than assuming a continuous rated production number.

The output route should preserve the receiver’s acceptance requirements. Define whether the material goes directly to transport, to a separate screening step, or to a temporary stockpile. Establish how samples are taken and how lots remain identifiable. If the receiver requires further drying or sizing, include that work in the site map instead of treating the grinder as the final quality-control step.

Match mobility to access, not to marketing labels

Crawler, trailer, wheeled, and skid-mounted arrangements solve different movement problems. A crawler may help reposition equipment within a work site, while long-distance transport still requires a separate legal and logistical review. A trailer configuration may simplify planned moves between accessible sites but still needs suitable turning space, setup ground, and towing compatibility. Review the current tub grinder product range only after the site route and material profile are documented.

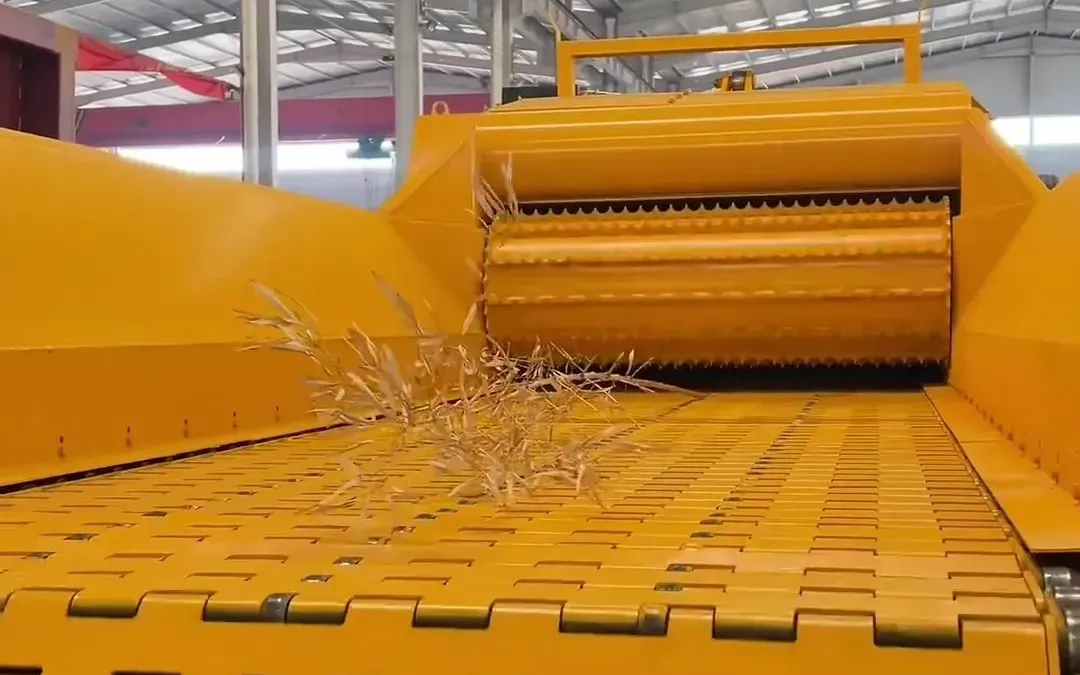

Some projects also compare a tub-fed process with a controlled horizontal infeed. The independent horizontal wood grinder resource gives another equipment view, but the decision should return to material geometry, contamination, loading method, desired output, and site movement.

Run a short site-readiness review before mobilization

1. Walk the inbound and outbound routes with the actual vehicle assumptions.
2. Mark receiving, inspection, grinding, output, and exception zones.
3. Confirm ground and drainage with the responsible site professional.
4. Check loader travel and discharge clearing through one complete simulated cycle.
5. Assign responsibility for inspection, sampling, release, rework, and records.
6. Confirm emergency access and the authorized isolation procedure.
7. Review the final layout whenever the machine, loader, material, or receiver specification changes.

The result should be a dated layout and responsibility sheet, not a verbal understanding. Keep assumptions visible: expected material types, operating window, vehicle set, storage duration, and downstream destination. The knowledge center can support further planning, and a configuration-specific review should use current product documentation rather than copied figures from an unrelated project.

Photograph the marked zones before the first production lot and record any change made during commissioning. A revised traffic route, different loader, larger stockpile, or new receiver requirement can invalidate the original layout. Treat the worksheet as a controlled operating record that must follow the real site, not as a one-time sales document.

Decision rule

A sawmill-residual site is ready only when material can move from arrival to accepted output without uncontrolled traffic conflicts, unrecorded contamination, or ambiguous ownership of quality decisions. If access, ground support, loader movement, discharge, sampling, or exception handling remains unresolved, keep it as an open action before mobilization. That discipline protects both operating time and the credibility of the fuel supplied downstream.

Evidence package and next step

Retain the stream map, representative photographs, measurements, configuration, pre-start record, gross and productive time, delay codes, accepted-output samples, rejects and corrective actions. Mark measured observations, supplier statements and planning assumptions separately.

Continue with the tub grinder product family, biomass site-requirements guide, feed contamination checklist, site-planning contact. For an adjacent WeiDong equipment view, see horizontal wood grinder. Final selection should follow representative material and a documented trial rather than an unverified headline rate.

Frequently asked questions

What should a sawmill tub grinder layout separate?

Incoming residual streams, held material, the loader route, grinding, discharge, sampling, service access and emergency access.

Why must the drawing be field verified?

Because stockpiles, slopes, loader turns and other sawmill traffic can invalidate clearances that appear acceptable on an unscaled sketch.
