Tub Grinder Yard Layout for Compost Feedstock
A scaled yard-layout checklist for receiving, inspection, preparation, loader paths, compost-feedstock output piles, service and emergency access.
A scaled yard-layout checklist for receiving, inspection, preparation, loader paths, compost-feedstock output piles, service and emergency access.

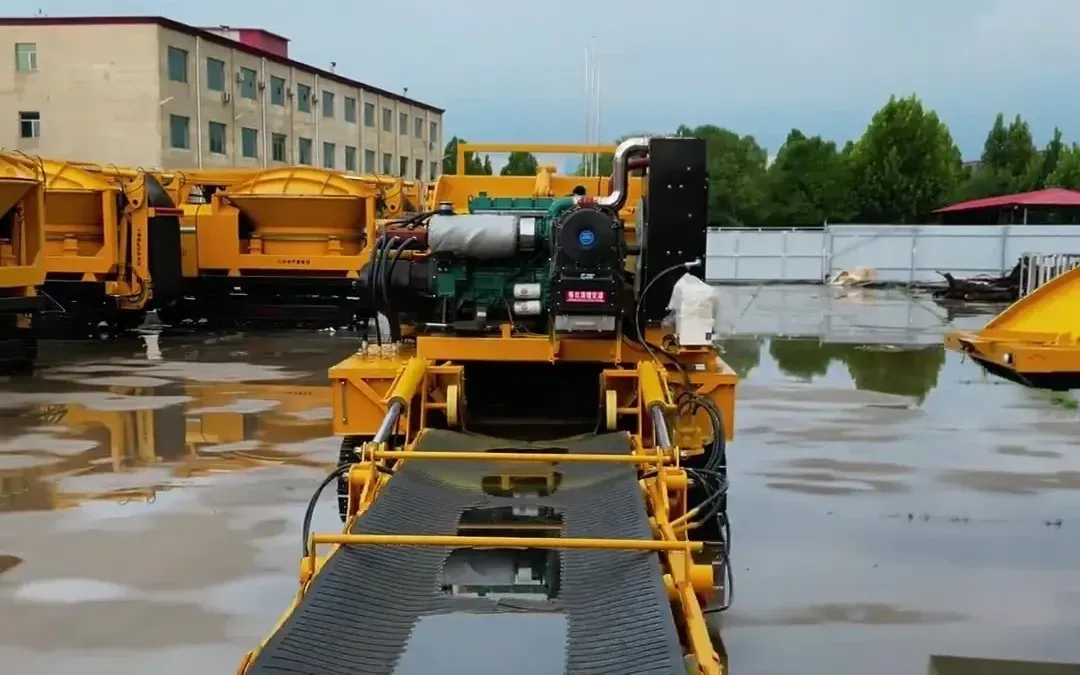

Compost feedstock yard layout for tub grinder work should show how material moves from receiving through inspection and preparation to accepted output, while preserving safe access and clear responsibility. Begin with a measured drawing and an identified feedstock envelope. The purpose is not to squeeze more piles around a machine; it is to prevent routine deliveries and interruptions from destroying the agreed operating route.
Define the feedstock before drawing stockpiles
Identify the woody material intended for size reduction and the destination of its processed output. A compost project may receive several material streams, but that does not make every stream suitable for a tub grinder. Keep exceptional receipts and unresolved mixtures outside the released feed queue until suitability has been reviewed against the configuration’s instructions and the project’s acceptance criteria.
List the receiving categories used on the site: released woody feed, material requiring preparation, uncertain receipts, unsuitable material and accepted output. Give each a visible status and responsible role. A pile’s location should not be its only identifier. If a pile changes status, the receiving record and layout reference must explain why it can enter another part of the route.
Survey the physical boundary
Measure gates, available operating area, access routes and fixed obstructions. Identify drainage, utilities, neighboring activities and existing restrictions. Use a drawing with a scale, revision and named owner. A satellite image or an equipment photograph may help orientation but cannot establish the operating or maintenance clearances required for a specific machine.
Before placing equipment, obtain its configuration-specific site requirements and review them with the responsible site team. Ground condition and access arrangements must be suitable for the actual equipment and work. Do not use a convenient sketch dimension as a substitute for documented requirements or assume that a crawler configuration permits operation on any surface.
Trace receiving without blocking released feed
Mark where a delivery arrives, is checked and is assigned a status. Include an appropriate place for unresolved material that does not block the approved operating route. State who makes the intake decision and how the material identity is preserved. If an uncertain load forces every other delivery to stop, record that as a receiving-layout constraint before increasing the planned delivery schedule.
Use the compost-feedstock contamination checklist to organize the intake questions. The layout should support those decisions rather than assuming all delivered material is immediately ready to feed. Contaminated or unsuitable material needs an authorized handling route, not repeated passes through the grinder.
Draw loader movements as a complete circuit
Show collection, prepared-feed pickup, presentation, return and output handling. Identify vehicle interfaces and places where people would otherwise cross the equipment circuit. Review separation and communication arrangements under the site’s approved controls. Do not prescribe a universal turning radius or exclusion distance; verify the requirements for the actual equipment and operation.
The mobile compost-feedstock loading workflow provides a related scheduling reference. Keep this drawing focused on the receiving yard and its interfaces. If one loader performs several tasks, walk the proposed sequence and identify when output handling competes with feeding instead of assuming uninterrupted availability.
Reserve output space with a release rule
Keep output awaiting a sampling decision separate from output released to its destination. Identify where oversize or material requiring another authorized pass waits. Record stockpile limits according to actual site requirements and handling arrangements. A cleared discharge route should not depend on moving unresolved material into a pile that has already been accepted.
Confirm when and how output leaves the yard. A delayed collection vehicle may affect the next operating window even if grinding equipment remains available. The layout review must therefore include storage and dispatch, not end at the discharge conveyor. Do not assume that nominal processing capacity is the same as the yard’s completed accepted-output capacity.
Walk interruption scenarios before accepting the drawing
| Scenario | Question to test | Record to retain |
|---|---|---|
| Unresolved delivery | Can it wait without blocking released-feed movement? | Intake status and responsible reviewer |
| Output collection delayed | Where does the next accepted batch go? | Storage decision and permitted operating change |
| Support equipment unavailable | Which tasks stop and which routes remain open? | Revised sequence and restart responsibility |
| Maintenance intervention | Can authorized access be preserved with the equipment safely secured? | Configuration instructions and release decision |
Protect access from gradual pile growth
Inspect the drawing against the actual pile boundaries during site review. A layout can become unsuitable gradually when temporary storage occupies service or emergency access. Changes in receipt volume, material preparation or output dispatch may require a new revision. Keep the current drawing available to the operating team rather than relying on an obsolete commissioning sketch.
Use the tub-grinder product section to identify the configuration under discussion, and the horizontal wood grinder overview if another equipment arrangement is being reviewed. Neither resource replaces the specific equipment’s site and access documentation.
Issue a reviewable layout pack
The orchard site-requirements checklist offers another example of documenting access and responsibility. Transfer the review method, not its feedstock assumptions. A compost receiving yard and an orchard collection point can have different receipt classes and output routes, so the approved drawing must describe the operation actually being planned.
Attach the measured drawing, receipt classifications, operating sequence, output acceptance rule and open-items register. Identify who can approve a changed route or restart after an interruption. Send that pack through the project contact page for configuration clarification. A useful yard layout keeps material status, supporting resources and safe access visible together, so normal work and foreseeable interruptions can be reviewed before the machine is placed.
Frequently asked questions
What must a compost-feedstock yard layout show?
Receiving, inspection, preparation, loader paths, grinding, output stockpiles, service and emergency access.
