Logging Slash Grinding Yard Layout: A Site Planning Checklist

Plan a logging slash grinding yard around incoming piles, loader movement, machine service access, output trucks and accepted-product storage.

A logging slash grinding yard layout must let material, machines and trucks move without crossing each other’s work. The layout should separate incoming slash, inspection, feeding, discharge, finished product and rejects while retaining safe access for maintenance. A larger grinder does not fix a blocked loader route or a full output bay. This checklist helps a contractor measure the site before settling on a machine and a production target. Note the person responsible for approving each access and stockpile decision on the drawing.

Begin with a measured site sketch

Mark the usable boundary, gates, slope, soft ground, overhead obstructions, drainage, neighboring activity and any restricted areas. Measure widths and turning points rather than relying on an aerial image alone. Ask the supplier for transport and operating dimensions of the proposed configuration, including conveyors and service doors. Keep a margin for the loader and service vehicle, but set that margin with the site owner and equipment supplier rather than a generic internet number. The whole-tree site requirements guide provides a related measurement framework; tangled slash often needs more inspection and pile separation.

Map incoming truck movement

Draw the approach road, queue, unloading point and exit as a continuous route. Check that a waiting truck will not block the machine, emergency access or output loading. Record vehicle length, trailer type and the expected delivery pattern. If many loads arrive together, allocate queue space or schedule appointments. Keep an identifiable place for load tickets and source labels so quantity records follow each pile. The logging slash intake worksheet explains why delivered and eligible material need separate measurements.

Provide an inspection and reject zone

Slash can contain soil-bearing roots, wire, stones or objects picked up at a landing. Establish a visible inspection point before the feed stockpile and a distinct area for rejected material. Make the decision and responsibility clear: who identifies hazards, who removes them and where they go. Do not pile suspect material next to clean feed where a loader can accidentally blend it back. Allow space for a loader to turn and sort without entering the truck queue. Record the inspected quantity so project cost and throughput calculations do not treat all arrivals as processable.

Position the grinder for feeding

Place the machine where the loader can approach the feed opening with representative limbs and tops, not only short clean pieces. Check sight lines and the operator’s station under the model manual. The loader should be able to pick, untangle, orient and present material without passing across a public vehicle path. Measure the stockpile-to-feed travel distance and time several cycles with the intended loader. If one loader also removes output, draw that second route and look for conflicts. A feasible feed opening on paper may still lead to poor flow when the pile is scattered.

Reserve discharge and product space

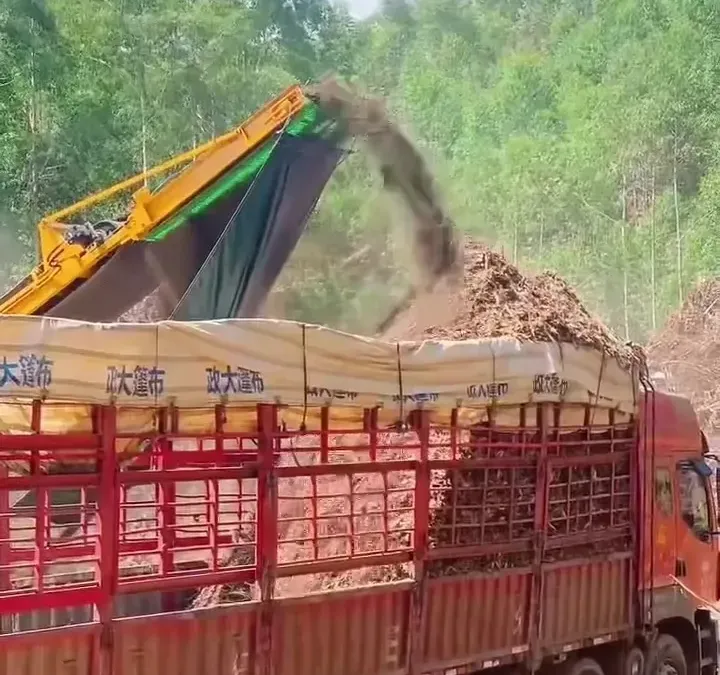

Show the conveyor or discharge direction, output stockpile, truck bay, oversize or regrind pile and sampling point. Ask the receiver for size, fines, moisture and contamination criteria before combining output lots. Keep accepted and untested product distinguishable. If the output truck is delayed, where will material go, and can the grinder keep working safely? The answer may set yard size more strongly than nominal machine throughput. Keep loader and truck paths clear of the discharge area according to the equipment manual and site traffic plan.

Include service access in the first drawing

Show the clearance needed to open guards and service doors, change a screen or wear part, and park a service vehicle. Identify fuel or power supply, spill response, lighting and fire provisions required by the site. Lockout and isolation procedures must be possible without a parked truck or stockpile blocking access. Do not use a brochure footprint as the whole working envelope. Verify maintenance clearance with the actual machine and site safety lead. Keep spare parts and tools in a location that does not create an obstruction or mix with finished product.

Check drainage, weather and ground

Rain can restrict access, change material moisture and affect stockpile handling. Record where water flows and whether ground bearing supports the grinder, loader and trucks when loaded. Avoid claiming that a surface is adequate without an engineering check where the site requires one. Segregate muddy slash from clean stock and review how runoff from stored material will be managed under local project rules. If work continues after dark, assess lighting at feed, unloading, output sampling and traffic crossings. Weather assumptions belong on the plan, not only in the cost sheet.

Test the plan with an actual cycle

Walk one representative truck arrival, unload, inspection, loader feed, discharge and output loading sequence. Time each step and mark where vehicles wait or reverse. Repeat with the largest typical piece and a reject. If traffic paths cross, revise the drawing before using an optimistic production rate. A logging slash budget worksheet can then price the chosen layout, including extra handling and idle time. Keep the trial log as evidence for later changes.

Send a useful layout brief

Provide a dimensioned sketch, access photos, material mix, source schedule, loader details, required outlet specification and expected working hours. Ask the supplier to return a model-specific operating envelope and a safe trial plan. The horizontal grinder range can start the equipment discussion; the site plan should be validated for the selected configuration. A horizontal wood grinder overview gives the broader equipment context. Send the sketch through the project enquiry page and retain each revision with its date and responsible reviewer.

Frequently asked questions

What should be measured before a logging slash yard layout is drawn?

Measure access width, turning space, stockpile footprint, ground condition, machine and loader dimensions, service clearances, truck cycle and required separation areas using the exact proposed equipment.

Should incoming slash and finished product share one pile?

Keep them identifiable and separate so contamination, moisture and receiver acceptance can be controlled and quantities can be measured independently.

Can a layout be finalized from a generic grinder drawing?

No. Confirm transport, operation, discharge and maintenance envelopes with the supplier and applicable site requirements for the actual configuration.
